Chassis Configuration:
2060mm wide-body cab
3800mm wheelbase
Yuchai 170HP engine
8JS75TC transmission (with synchronizer, factory-fitted PTO)
Factory-fitted 100Ah dual batteries
9R22.5 steel-rim tires
120L plastic fuel tank
3.0-ton forged I-beam disc front axle
7-ton 340 stamped-and-welded rear axle (4.875 gear ratio)
Exhaust brake
Multi-function steering wheel
Manual adjustment + electric heating defrosting exterior mirrors
Touch-controlled air conditioning
ASR + HSA (hill-start assist control)
Seat reclining function
Aluminum alloy air reservoir
Dual-screen (MP3) with remote-controlled power windows
Body Configuration:
Advertised capacity: 10.1 cubic meters
Constructed with high-quality Q235 carbon steel plates
Standard high-flow fuel pump (capable of both pumping in and out)
Standard full-compartment with complete Euro-standard bottom-loading fuel system
Optional high-flow fuel dispenser with 15m auto-retractable hose reel and fuel nozzle

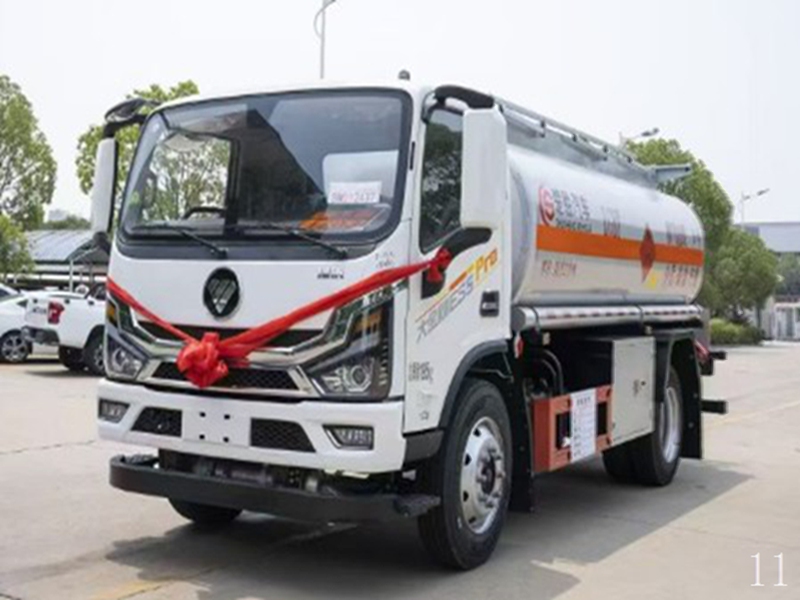

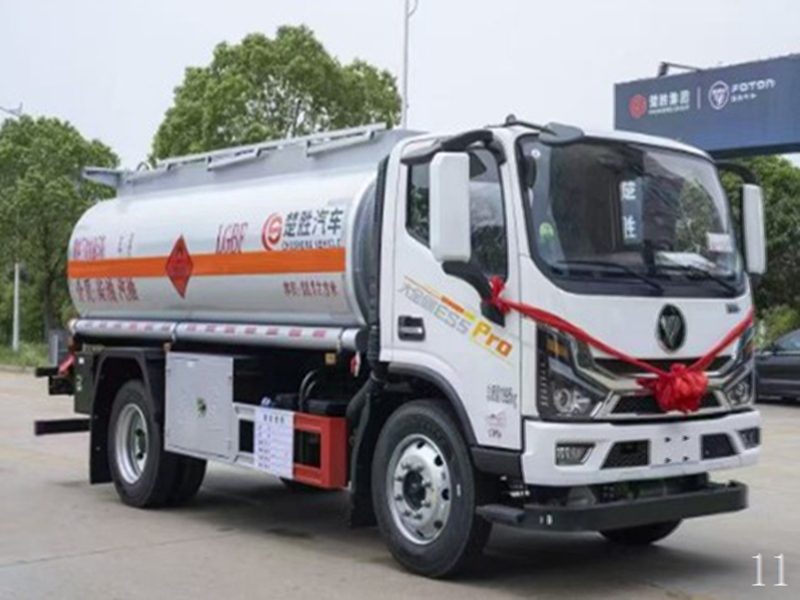

10-Cubic-Meter Foton Auman ES5 Fuel Tanker_8-Ton Foton Auman Fuel Tanker
New Design:
Updated 2060mm single-cab body with Diamond logo
Stylish, dynamic, and bold exterior
Distinctive interior color scheme with dual-tone design and layered aesthetics
Spacious cabin and wide field of vision
NVH performance optimized for all operating conditions, creating a quiet and comfortable driving environment
Air-suspended seats with ventilation and heating functions for enhanced sound quality and ride comfort
Interior Trim:
Ultra-fine textured trim, soft and comfortable like denim fabric, with a tech-inspired finish that complements the vehicle’s ambiance
Audio & Entertainment:
10.25-inch MP5 + Bluetooth (optional)
Instrument cluster features a 3.5-inch monochrome TFT screen integrated with a dual-screen display for clear, easy-to-read information
Full touch operation, supports optional reverse camera and Wi-Fi hotspot connectivity for a richer driving experience

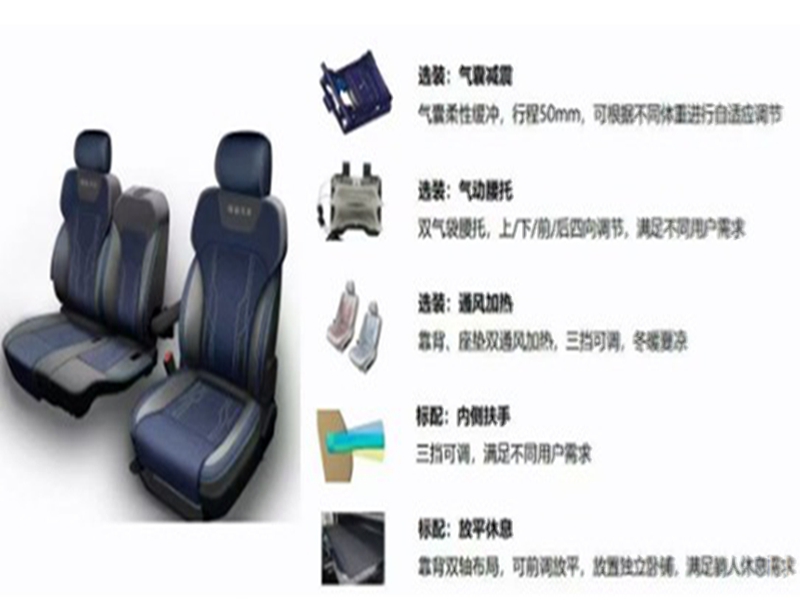

Seats:
Driver’s seat standard with inner armrest and reclining rest function
Optional air-suspension damping, pneumatic lumbar support, and ventilation/heating for enhanced comfort
Optional Features:
Air-Suspension Damping
Flexible cushioning with 50mm travel, adaptively adjusting to different body weights
Pneumatic Lumbar Support
Dual-airbag lumbar support with four-way adjustment (up/down/front/back) to meet diverse user needs
Ventilation & Heating
Dual ventilation and heating for backrest and seat cushion, with three adjustable levels for year-round comfort
Standard Features:
Inner Armrest
Three adjustable levels to suit user preferences
Reclining Rest Function
Dual-axis backrest design allows forward adjustment to a flat position, accommodating an independent sleeping berth for rest
Seats
Long Maintenance Intervals:
Extended maintenance cycles for reduced downtime
High Braking Performance:
Leveraged brake pedal and wedge-type brake system
Standard ASR + HSA system for industry-leading braking performance
Excellent braking progression and efficiency
Standard drive anti-slip and hill-start assist functions to enhance traction and prevent rollback
Rich Configuration – PEPS System:
Optional keyless entry + push-button start for added convenience
System includes self-diagnosis protection and anti-theft features for enhanced vehicle security
Standard Smart Fuel Efficiency:
Chassis equipped with EBP fuel-saving switch (E: empty load; B: medium load; P: heavy load) to adjust fuel consumption based on driving conditions, achieving over 15% fuel savings
Reliability:
Tested across two proving grounds with 24 vehicles, 12 road conditions simulating real-world usage
Nearly 300-day validation period and 1 million kilometers of endurance testing
Single vehicle validation of 400,000 kilometers
10-year/400,000-kilometer warranty with no major repairs required
Reliability improved by 16% compared to baseline models, leading the industry
