[Main Technical Parameters] | |||
Product trademark | Product trademark | Product trademark | Product trademark |
Qi Xing brand | Qi Xing brand | Qi Xing brand | Qi Xing brand |
Announcement batch | Announcement batch | Announcement batch | Announcement batch |
371 | 371 | 371 | 371 |
product name | product name | product name | product name |

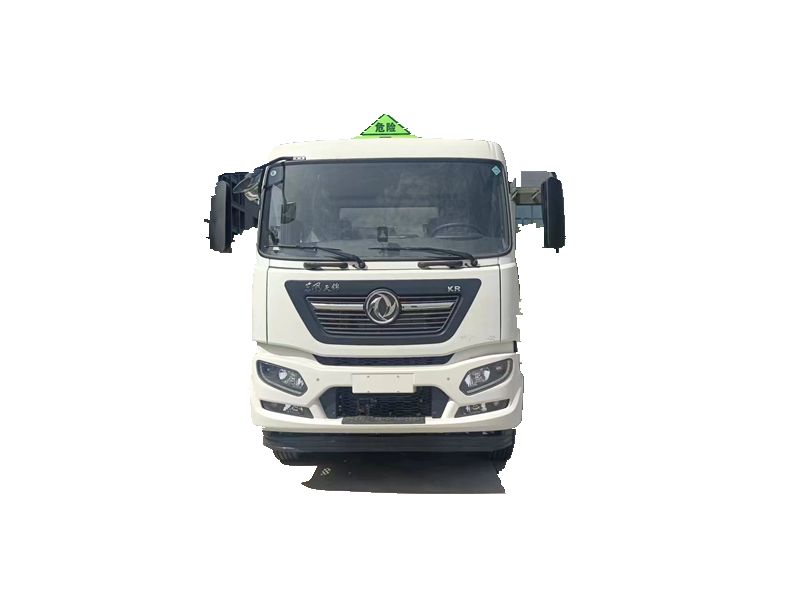

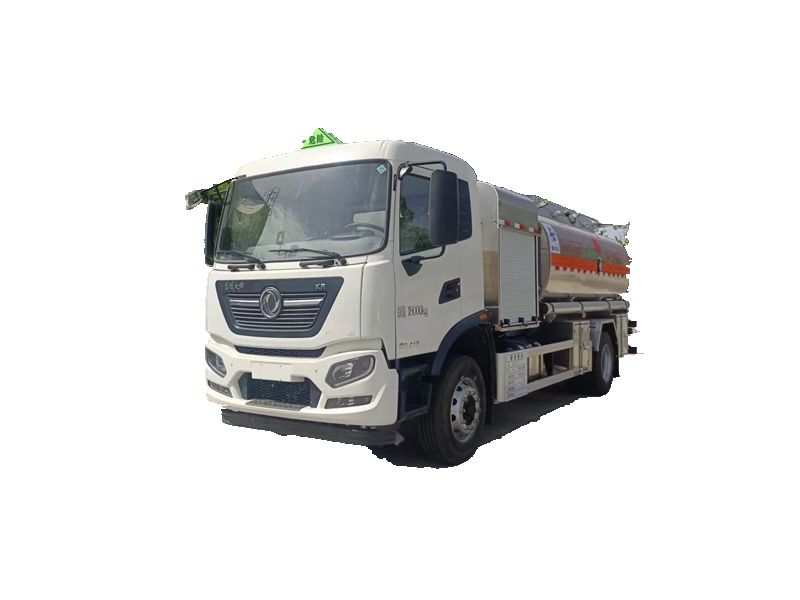

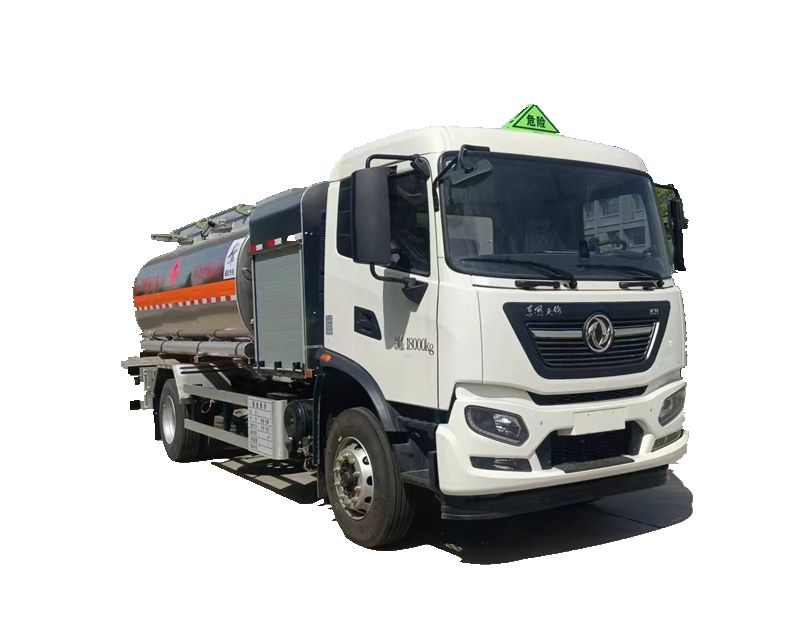

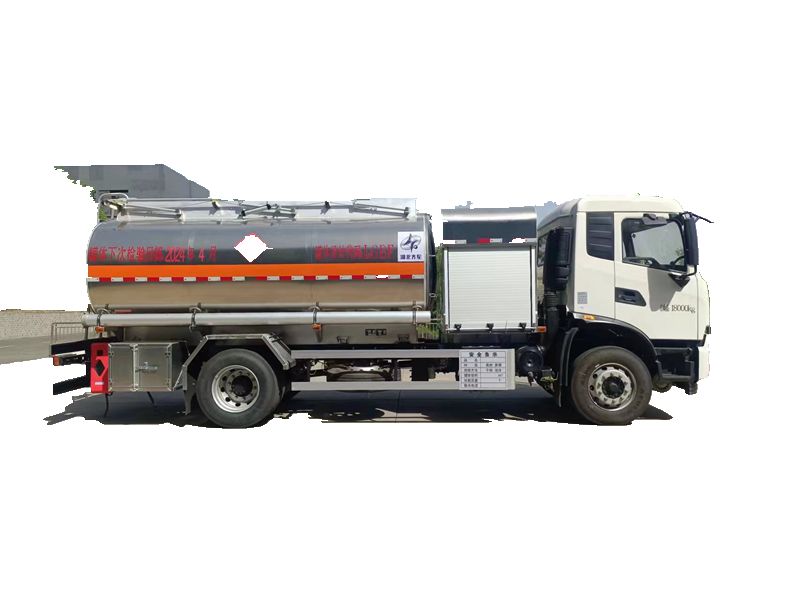

QXC5180GJYD6A Aircraft refueling vehicle | QXC5180GJYD6A Aircraft refueling vehicle | QXC5180GJYD6A Aircraft refueling vehicle | QXC5180GJYD6A Aircraft refueling vehicle |
Product number | Product number | Product number | Product number |
BB537101100 | BB537101100 | BB537101100 | BB537101100 |
gross mass (Kg) | gross mass (Kg) | gross mass (Kg) | gross mass (Kg) |
18000 | 18000 | 18000 | 18000 |
Tank volume (m3) | Tank volume (m3) | ||
13.5 | |||
Rated load mass (kg) | Rated load mass (kg) | Rated load mass (kg) | Rated load mass (kg) |
10355,10290 | 10355,10290 | 10355,10290 | 10355,10290 |
outline dimension (mm) | outline dimension (mm) | outline dimension (mm) | outline dimension (mm) |
8415,8815,8385,8785,9580,9815,9685×2470,2500,2420,2380×3035,3390,3560,3070,3330,3095,3175 | 8415,8815,8385,8785,9580,9815,9685×2470,2500,2420,2380×3035,3390,3560,3070,3330,3095,3175 | 8415,8815,8385,8785,9580,9815,9685×2470,2500,2420,2380×3035,3390,3560,3070,3330,3095,3175 | 8415,8815,8385,8785,9580,9815,9685×2470,2500,2420,2380×3035,3390,3560,3070,3330,3095,3175 |
Number of tires | Number of tires | Number of tires | Number of tires |
6 | 6 | 6 | 6 |
Approach Angle / Departure Angle () | Approach Angle / Departure Angle () | ||
16/12 | 16/12 | 16/12 | 16/12 |
tyre size | tyre size | tyre size | tyre size |

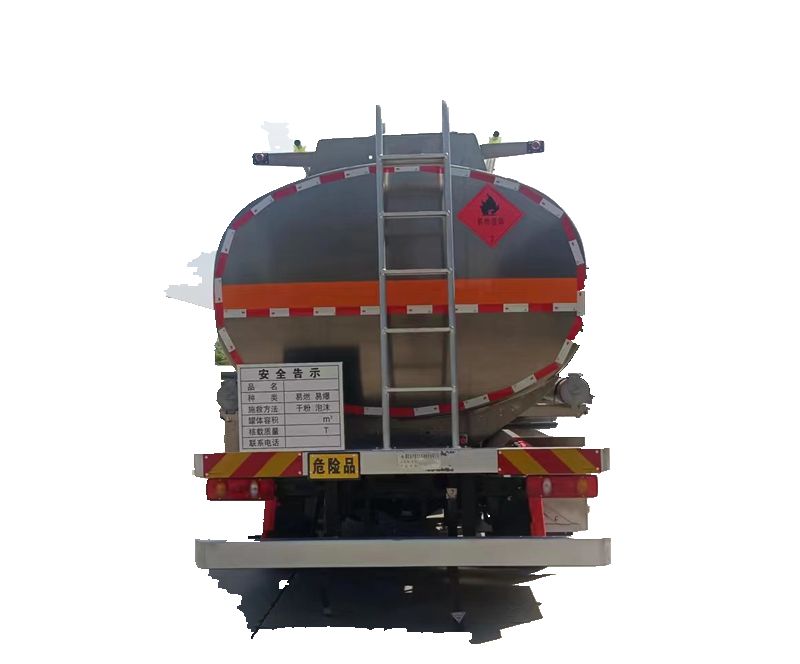

Tank:refueling truck the tank is made of aluminum alloy, which is light in weight, large in volume, corrosion resistant and pollution-free, ensuring the quality of oil products.
Fuel pump: refueling truckstainless steel self-priming centrifugal pump, coil fuel flow 300L/min, pipeline pumping flow 700L/min, working pressure is 0.25MPa.
Flowmeter: 0.2 grade accuracy, 50 waist wheel flow meter.
Filter separator: rated flow 400L/min, rated working pressure 1.0MPa, maximum allowable pressure difference 0.15 Mpa, in line with the requirements of API 1581 version 3refueling truck.
Gravity fuel roller: automatic reset roller, fuel hose diameter 38mm, length 15m.
Level gauge: stainless steel float in the tank, 10 inch aluminum alloy dial on the left side of the tank, can clearly observe the current volume of liquid in the tank.
Operating System:refueling truck Centralized control from an independent operator's room. Instrumentation includes vacuum gauges for pump intake, pressure gauges for pump discharge, oil pump speed gauges, and differential pressure gauges for filters. Valve operation involves the main power switch, lighting switch, emergency stop switch, oil pump speed control knob, fueling valve, recirculation filter valve, sampling valve, and subsea valve control combination switch.
function Introduction:
1.refueling truck Coil oiling--The fuel in the fuel tank of the vehicle is filtered and measured, and then injected into the aircraft fuel tank or other fuel receiving equipment through the gravity oiling gun of the coil hose in the control room.
2.refueling truck Oil pumping and filtering--The fuel in the tank of the vehicle or in the external pipeline is filtered and pumped back to the tank of the vehicle or other oil receiving equipment through the oil pumping joint to realize the function of circulating filtration refueling truck.
3.refueling truck Oil filling in the tank--oil is filled at the bottom of the tank by connecting the valve to the pipeline, or the pumping function can be realized through this oil pumprefueling truck.
