Short-Term Focus on Price, Long-Term Focus on Quality – The 5-Ton 'Ceiling' 6.2m³ Oil Tanker, a Perfect Match of Power and Performance, Built by Dongfeng!"

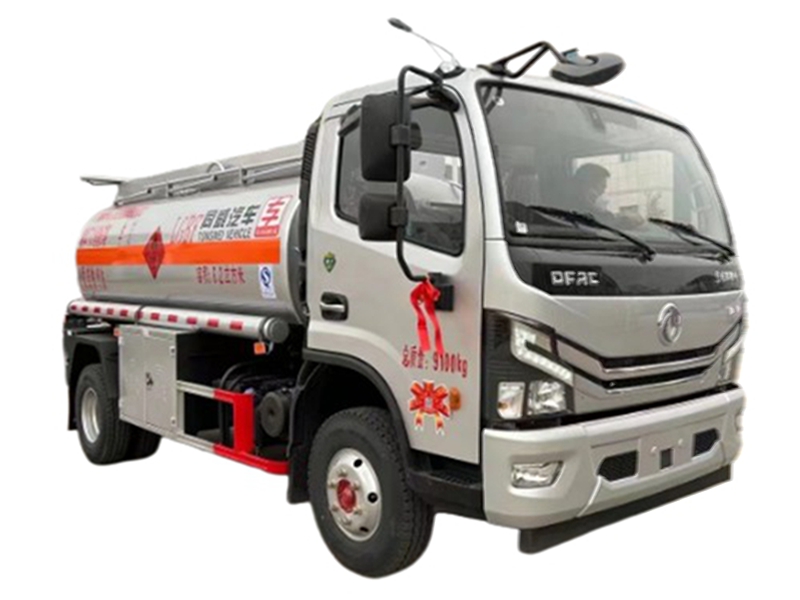

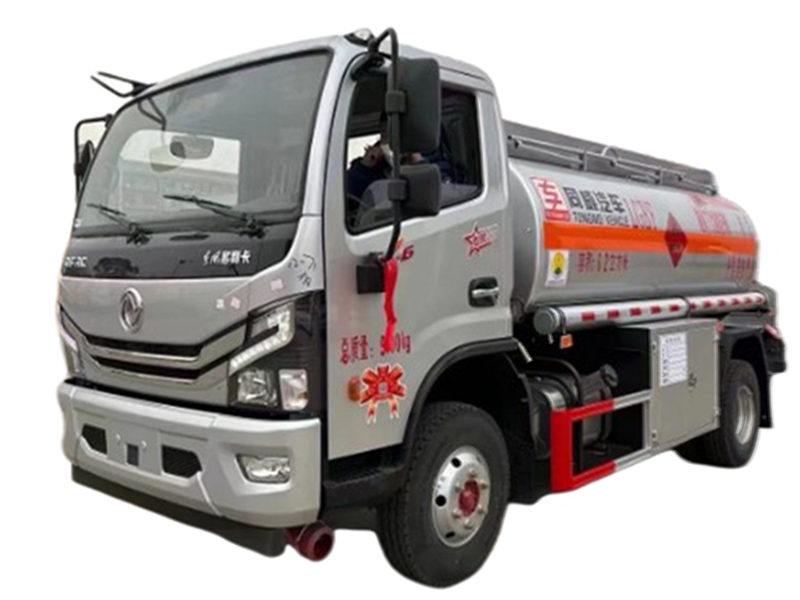

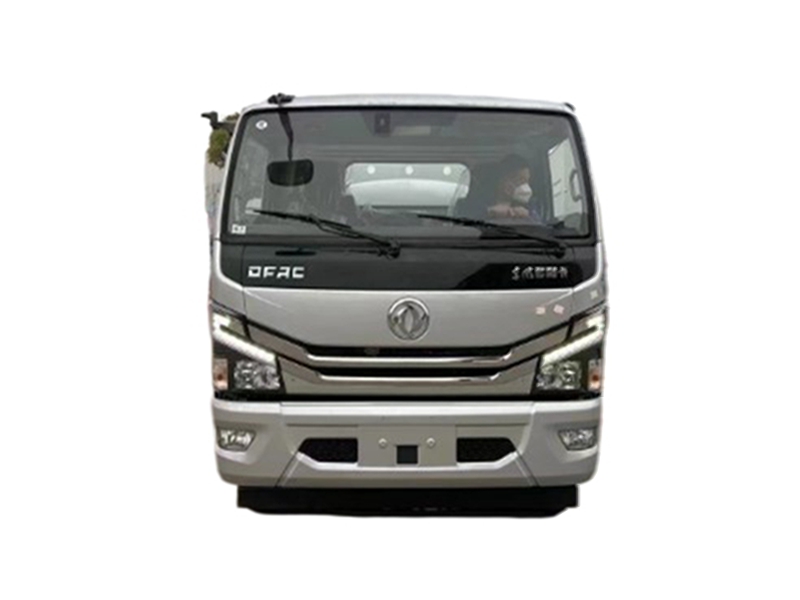

The Dongfeng Dorica D6 equipped with a Yuchai engine, delivering a full 5-ton capacity and a spacious 6.2m³ tank, is the ultimate choice for reliability and efficiency. A fine horse deserves fine gear—choose Dongfeng for unmatched quality in a 5-ton oil tanker.
Chassis Model: EQ1095SJ8CD2WXP
Wheelbase: 3,308mm
Cab: 2,030mm (B19 model, wide-body design)
Engine: Yuchai 140HP, 2.4L (103KW), Max Torque 400N·m
Transmission: Wanliyang 6-speed manual
Front & Rear Axles: Dana Red Bridge (2.2-disc front / 5.5T rear, front disc with speed limiter)
Frame: 192mm straight high-strength beam
Tires: 7.50R16 steel-belted radial tires (run-flat)
New Regulations Compliance: Forward Collision Warning, Lane Departure Warning
8/10+7 High-Strength Rear Leaf Springs
Air Conditioning, Central Control, Power Windows
Pneumatic Brakes, ABS, Multi-Function Steering Wheel
Driving Recorder
Why Choose This Tanker?
✅ Superior Power & Durability – Yuchai’s "Golden Engine" ensures strong performance.
✅ Wider Cab for Comfort – The B19 wide-body design enhances driver comfort.
✅ Heavy-Duty Chassis – High-strength frame and premium suspension outperform competitors.
✅ Safety-First Design – Equipped with advanced driver-assistance systems (ADAS).
✅ Regulation-Compliant – Meets the latest safety standards for commercial vehicles.
For a dependable, high-capacity 5-ton oil tanker, the Dongfeng Dorica D6 is the clear winner. Choose quality that lasts!
| Parameter | English Translation |
|---|---|
| Product Trademark | Zhuanwei Brand |
| Announcement Batch | 372 |
| Product Name | Zhuanwei Brand HTW5095GJYEC6 Fuel Tanker |
| Total Mass (kg) | 9100 |
| Tank Volume (m³) | 6.2 |
| Rated Mass (kg) | 4905, 5000 |
| Overall Dimensions (mm) | 6250X2300X2700 |
| Kerb Mass (kg) | 4000, 3905 |
| Cargo Compartment Dimensions (mm) | XX |
| Rated Passenger Capacity (persons) | - |
| Permitted Trailer Total Mass (kg) | - |
| Driving Cab Seating Capacity (persons) | 3 |
| Saddle Maximum Load Capacity (kg) | - |
| Approach Angle/Departure Angle (°) | 25/12 |
| Front Overhang/Rear Overhang (mm) | 1130/1812, 1230/1712 |
| Axle Load (kg) | 3640/5460, 3300/5800 |
| Maximum Speed (km/h) | 80 |
| Remarks: | |
| 1. This vehicle is suitable for transporting dangerous goods. The vehicle type for transporting dangerous goods is FL type. The maximum density of the permitted medium is 830 kg/m³. The total tank volume is 6.2 m³, and the effective tank volume is 5.9 m³. The tank dimensions (length × major axis × minor axis) (mm) are 3800×1750×1200. | |
| 2. The side/rear protection materials are Q235. The side/rear protection connection methods are bolted and welded. The rear protection cross-sectional dimensions are 120×60 mm, and the lower edge is 450 mm above the ground. An optional rear protection cross-sectional dimension of 100×50 mm is available. Fuel dispenser models and manufacturers: HS1812B/Tokheim Constant Technology (Guangzhou) Co., Ltd., SK20QF-111A, SK20QF-222A/Zhengzhou Sanjin Petroleum Equipment Manufacturing Co., Ltd., CS20D1110F/Zhengxing Technology Co., Ltd., JSK-70B1121CZ, JSK-70B1121C, JSK45B1121C/Wen'en Jialijia (Beijing) Petrochemical Equipment Co., Ltd., ZH3111/Foshan Zhongze Electromechanical Technology Co., Ltd., HT-CZ1111/Hubei Huate Special Equipment Co., Ltd., FB80(EX), ACZS-1112, ACZS-1111/Yongjia County Aocheng Hardware Products Co., Ltd., HM-8111/Rizhao Huiming Mechanical Equipment Co., Ltd., BL1211Z/Guangdong Beilin Energy Equipment Co., Ltd., ZY181111/Anhui Zhongyuan Instrument Co., Ltd. | |
| 3. Only a chassis with a wheelbase of 3308 mm is used. The vehicle is equipped with a front-mounted exhaust pipe, speed limiter (limited to 80 km/h), front-wheel disc brakes, and radial tires. It is installed with a satellite positioning-enabled driving recorder, and the steering wheels are equipped with tire burst emergency protection devices. The vehicle can optionally be equipped with a directly powered ETC onboard device. The ABS system model/manufacturer is ABS/ASR-24V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd. The air reservoir installation position is optional. The rear identification installation position is optional. | |
| Chassis Technical Parameters | |
| Chassis Model | EQ1095SJ8CD2WXP |
| Chassis Name | Cargo Vehicle Chassis |
| Trademark Name | Dongfeng Brand |
| Manufacturer | Dongfeng Motor Corporation |
| Number of Axles | 2 |
| Number of Tires | 6 |
| Wheelbase (mm) | 3308 |
| Tire Specification | 7.50R16 |
| Number of Leaf Springs | 8/10+7 |
| Front Track (mm) | 1755 |
| Fuel Type | Diesel |
| Rear Track (mm) | 1586, 1650, 1800, 1720 |
| Emission Standard | GB17691-2018 National VI |
| Engine Model | YCY24140-60 |
| Engine Manufacturer | Guangxi Yuchai Machinery Co., Ltd. |
| Engine Displacement (L) | 2.36 |
| Engine Power (kW) | 103 |
