[Main Technical Parameters] | |||
Product trademark | Qi Xing brand | Announcement batch | 372 |
product name | QXC5120GJYC6A Aircraft refueling vehicle | Product number | EB4372G3100 |
gross mass (Kg) | 11995 | Tank volume (m3) |
|
Rated load mass (Kg) | 6480 | outline dimension (mm) | 7070×2350×2850 |
curb weight (Kg) | 5320 | Truck size (mm) | ×× |
Rated passenger capacity (persons) |
| Total mass of the trailer (Kg) |
|
Number of passengers in the cab (persons) | 3 | Load mass utilization coefficient |
|
Approach Angle / Departure Angle (°) | 20/13 | Front/rear suspension (mm) | 1155/2015 |
number of axles | 2 | wheel base (mm) | 4200,3900 |
axle weight (Kg) | 4360/7635 | Maximum speed (Km/h) | 80 |
else | Total tank capacity: 8.5 cubic meters, effective tank volume: 8.1 cubic meters. This vehicle is suitable for the transportation of hazardous materials. Vehicle type: FL model, maximum medium density: 800 kg/m³; Tank dimensions (length × long axis × short axis) (mm): 3800 × 2050 × 1400; Axle spacing only 3900 mm; Side protection material: aluminum alloy 6061, rear protection material: Q235. Both side and rear protections are bolted together. Rear protection cross-sectional dimensions (mm): 80 × 150, rear protection ground clearance height: 470 mm. Optional tool box door lock appearance style, optional fire extinguisher bracket style; optional on-board ETC device with direct power supply, installation of a satellite positioning function driving recorder, front-mounted exhaust pipe, front-wheel disc brakes and speed limit devices installed, speed limit 80 km/h, emergency tire blowout protection device installed on steering wheels, only radial tires used on the chassis; ABS manufacturer/model: 1. Guangzhou RuiLi Kemi Automotive Electronics Co., Ltd./CM4XL-4S/4M; 2. Zhejiang Wan'an Technology Co., Ltd. / VIE ABS-II; Fueling machine models and manufacturers: CS20D1110F/Zhengxing Technology Co., Ltd., BL1111Z/ Zhuhai Beilin Fueling Equipment Co., Ltd. Zhongshan Branch, HS1812B/ Tokken Hengshan Technology (Guangzhou) Co., Ltd., SKES-1112/Henghe Jiahua Technology Co., Ltd. (Shanghai Bole Machinery Co., Ltd.),SK20QF-111A, SK20QF-222A/ Zhengzhou Sanjin Petroleum Equipment Manufacturing Co., Ltd.,JSK-70B1121CZ,JSK-70B1121C,JSK45B1121C/ Wuneng Jialijia (Beijing) Petrochemical Equipment Co., Ltd., ZH6444/Foshan Zhongze Electromechanical Technology Co., Ltd., XTST121BF1/Xingtai Zhengrun Tong Technology Development Co., Ltd., TA-1111KFJ/Shenyang Aerospace Xinyang Electromechanical Co., Ltd | ||
[Chassis Technical Parameters] | |||
Trunk model | CA1120P40K59L4BE6A84 | Name of chassis | Flathead diesel truck chassis (class 2) |
brand name | The Liberation Plate | manufacturing enterprise | China FAW Group Corporation Limited |
outline dimension (mm) | 7460,6875×2210,2226,2270,2148,2164,2208,2313×2400,3000,3190 | Number of tires | 6 |
Approach Angle / Departure Angle (°) | 20/13 | tyre size | 245/70R19.5 16PR,8.25R20 16PR,255/70R22.5 16PR |
Number of steel plate sheets | 3/3+3,3/7+9,3/10+4,7/10+4,7/10+3,3/4+4 | front gauge (mm) | 1738,1761,1726,1751,1815 |
Type of fuel | diesel oil | rear track (mm) | 1678,1740,1690,1752,1800,1812 |
effluent standard | GB17691-2018 National VI | ||
engine type | Engine manufacturing enterprise | displacement (ml) | power (Kw) |
CA4DD2-18E6 | China FAW Group Co., LTD | 3230 | 132 |

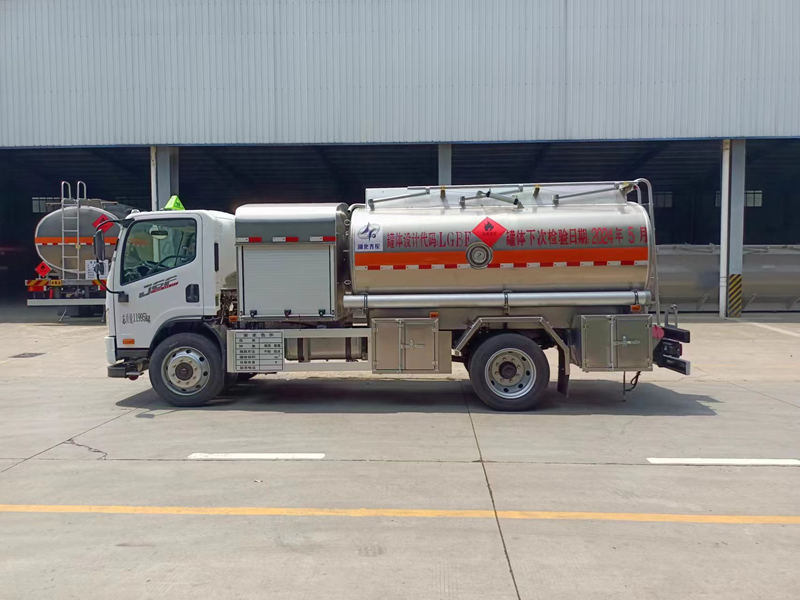

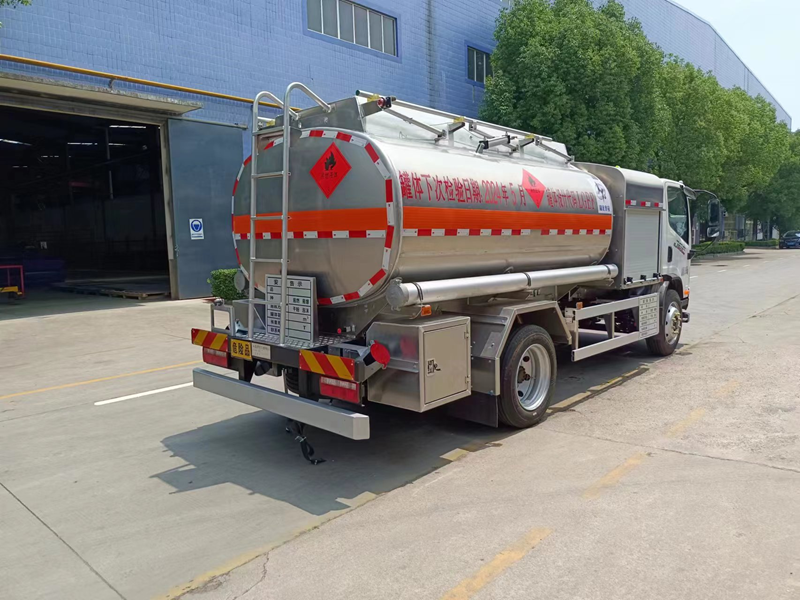

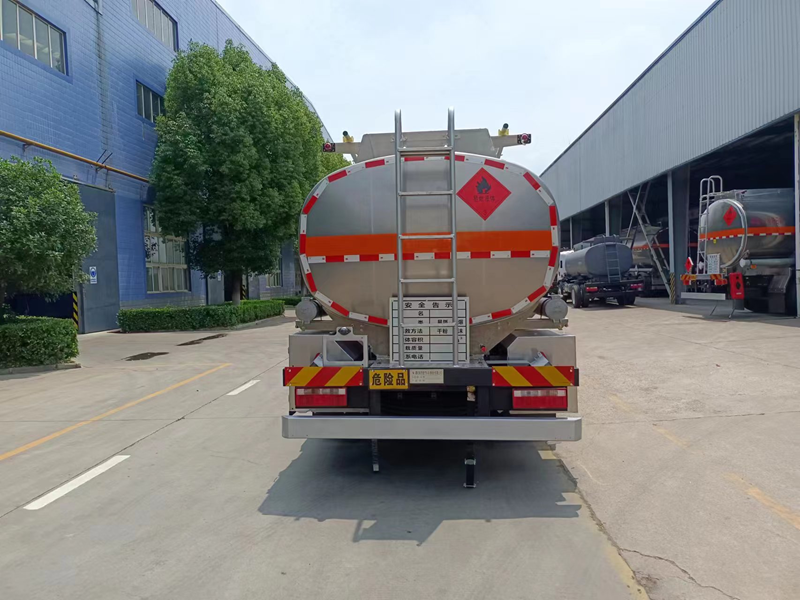

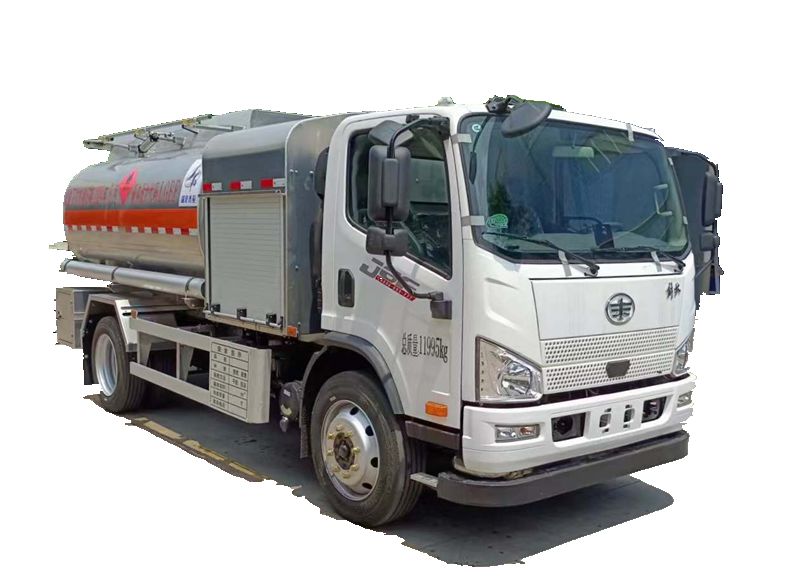

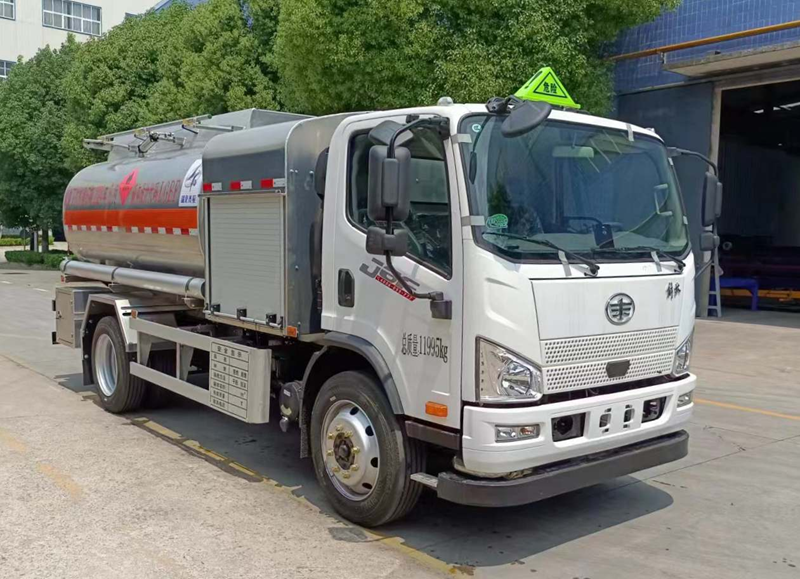

The QXC5120GJYC6A-tAircraft refueling truckype aircraft tank truck is a new type of tank truck developed by Hubei Qixing Automotive Body Co., Ltd. It is a specialized device for gravity refueling on the wings of small aircraft taking off and landing at civilian or general aviation airports. The vehicle mainly consists of a two-class truck chassis, a fuel pump system,Aircraft refueling truck a control system, an air control system, and an electrical system. The cab is flat-headed, single-row seating with two doors, accommodating 2 to 3 people; the drive type is 4x2, with a rated flow rate of 80L-120L/min for gravity refueling, and a maximum speed of 80km/hAircraft refueling truck.
The company was founded on May 23, 2013. It mainly engages in the sales, import, and export of special vehicles (e.g., tanker trucks, sanitation vehicles, dangerous goods vans), construction machinery, auto parts, as well as the manufacturing of special vehicle equipment and molds.
Its main products include tanker trucks, sanitation vehicles, dangerous goods enclosed trucks, cylinder transport vehicles, and collision - avoidance buffer trucks. The company also offers customized manufacturing and import - export services for these products.
The company provides a one - stop service covering customization, exchange, return, installment payment, vehicle registration assistance, and door - to - door delivery.
The products have already reached markets in Europe, America, Vietnam, North Korea, and Southeast Asia. It is continuously expanding into emerging markets like the Middle East and South America. The company can adapt to the regulatory standards (such as environmental protection and safety certifications) of the customers' regions.
