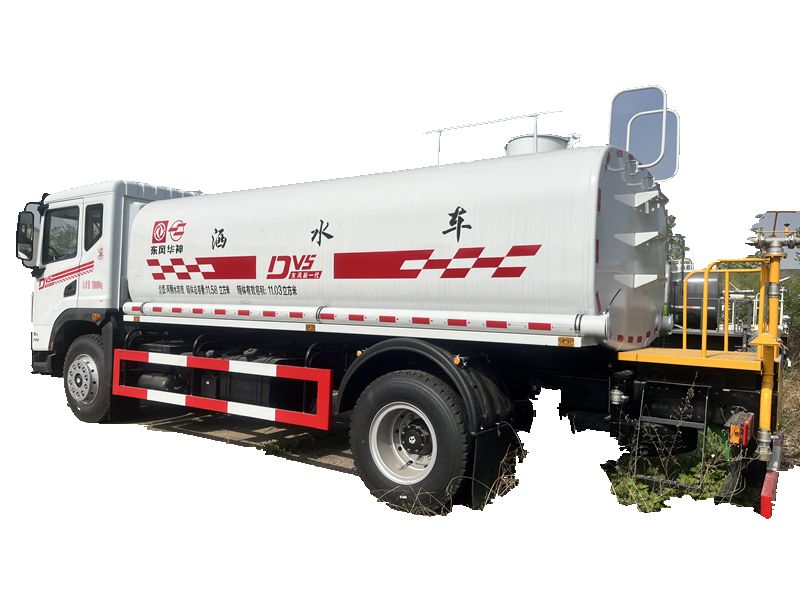

Dongfeng 12 cubic water sprinklers

running type sprayer for tree,Spray car, also known as multi-functional green sprinkler. It is used for urban roads, large-scale factories, troops, gardens and other units to clean roads, sanitation, dust prevention, watering, spraying pesticides, etc., in order to beautify the environment.

sprinkling truck,tree sprinkling tanke,At the same time, it can be used for temporary emergency fire sprinklers, and each sprinkler is equipped with a special interface for fire.

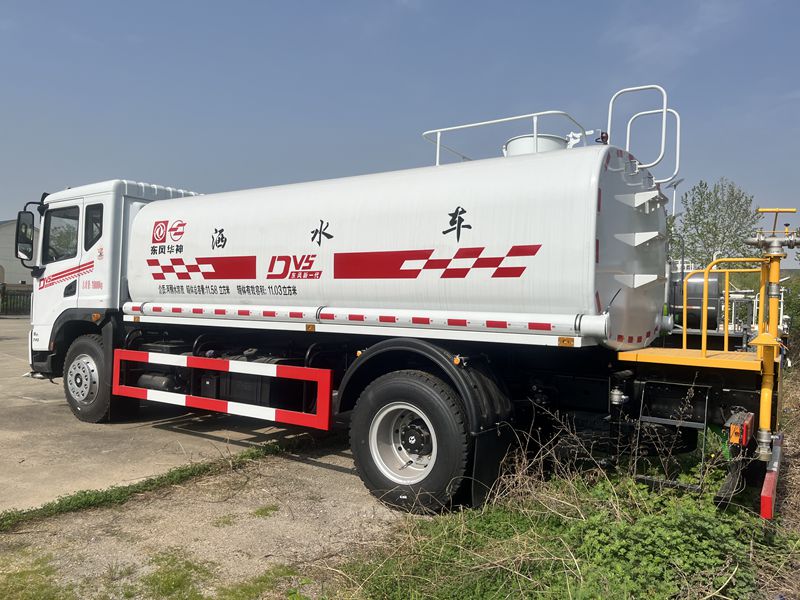

East wind sprinkler

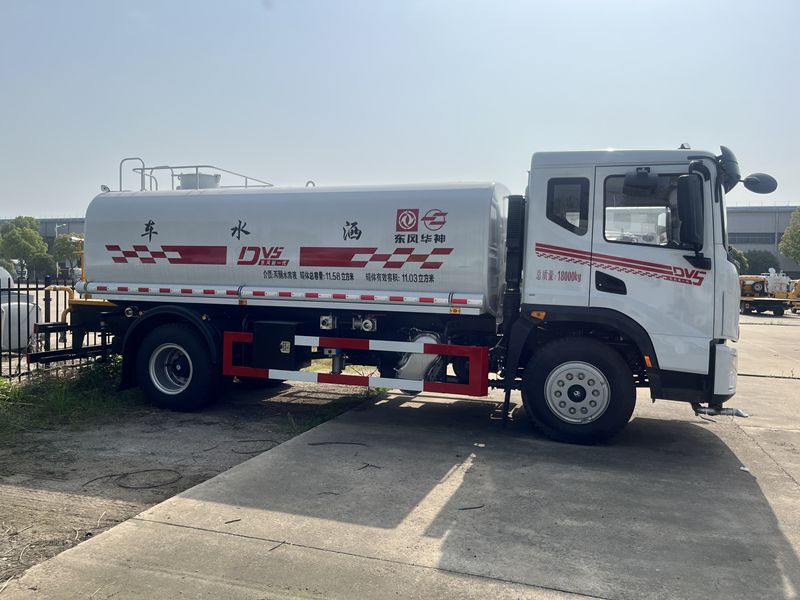

sprinkling truck

sprinkling truck,The engine drives the gearbox, and the power extractor installed on the gearbox drives the sprinkler pump, which generates the main power and sprays the liquid inside the tank through the pipe network. Self-priming height :≤7m, sprinkler width :≥20m, maximum range :≥28m; Adjustable into column shape, range ≥28m; Can also be adjusted into fog, range ≥5m.

sprinkling trucksprinkling truckSpraying before and spraying after, the front is equipped with a duck-shaped nozzle or round head nozzle, the back is equipped with a cylindrical sprinkler nozzle or showerhead nozzle, and the rear has a working platform equipped with a high-pressure water cannon. The rear can also be equipped with 8 nozzles (optional) sprinkler generally used to flush streets.

sprinkling truck

Green sprinkler, multi-functional sprinkler, truck hanging sprinkler, water truck sprinkler, fire sprinkler.

volumetric
•3-8 cubic water sprinklerssprinkling truck•

10-12 cubic water sprinkling truck

•18-20 cubic water sprinkling truck•

More than 20 cubicsprinkling truck

1. Who are We?
Our headquarter is located in Hubei, China, and since 2013, we have sold to Southeast Asia (30.00%), South America (25.00%), South Asia (20.00%), Middle East (15.00%), East Asia (10.00%). There are 51-100 people in our office. Refrigerated truck

2. How do we guarantee quality?
There are always pre-production samples before mass production;
Always carry out final inspection before shipment;

3. What can you buy from us?
Special manufacturing, construction machinery manufacturing, auto parts, auto trade, hardware sales

4. Why do you buy from us instead of other suppliers?
Have independent research and development of professional special vehicles
With 30 years of experience and 1,000 employees, this is how we maintain excellent quality and competitive offers for our valued customers around the world. Cold chain diesel oil

5. What services can we provide?
Accepted delivery methods: FOB, CIF, EXW;
Accepted payment currency: USD;
Acceptable payment methods: telegraphic transfer, letter of credit;
Spoken: English, Chinese

Company profile

Hubei Shengda Automobile Co., Ltd. was established in May 2013. After years of development, the company has more than 100 sales elites and more than 20 after-sales service personnel. The company's annual sales of more than 2,000 special vehicles, over the years of honest service, has won the satisfaction and recognition of nearly 10,000 customers. We also hope that in the future, more customers can get our satisfactory service. Refrigerated transport

tree sprinkling tanke,The company mainly sells large aluminum alloy semi-trailer tanker, small and medium-sized tanker, dangerous goods box truck, gas cylinder truck, sanitation truck. We always have a variety of vehicle models in stock to meet the needs of different customers.

.

running type sprayer for treeFunction description
(1) Sprinkler as close as possible to the operation point, parking.

(2) Open the side door of the cabinet, take out the suction hose, and make it swing backward without bending.

(3). Pump the suction hose as deep as possible into the water to ensure that the end of the pipe is always less than 300mm away from the liquid level during the operation.

(4). Push the four-way valve handle to be perpendicular to the ground.

(5). Hang the transmission into neutral, then start the engine, disengage the clutch, pull the force take-up switch back, that is, shift the force, and the pump starts to run.

(6) The operator can pass the observation mirror on the back seal head, when the liquid level reaches the middle of the observation mirror, the driver should be notified, and the colleague should quickly pull the suction hose away from the water or close the four-way valve.

(7) After putting away the hose, put it back in the walking box and close the side door.

(8) Drive the sprinkler away from the pumping site

sprinkling truckspraying operation

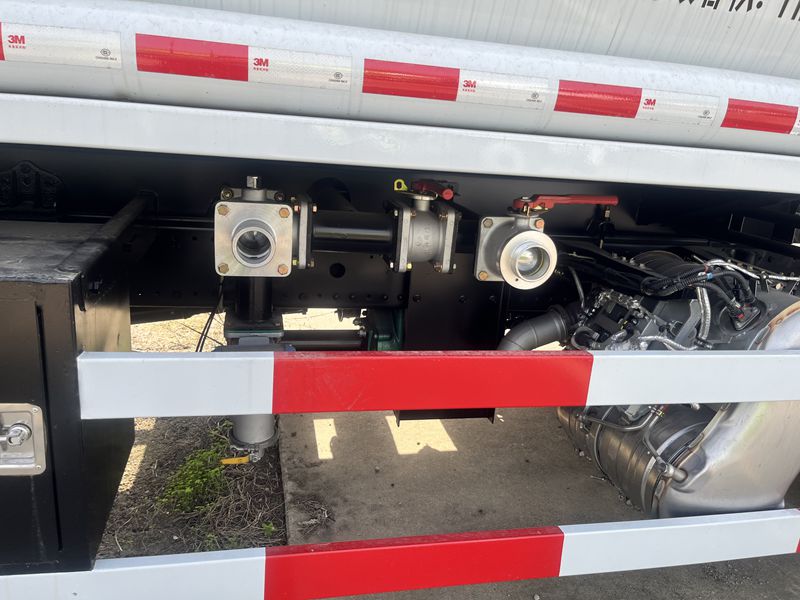

(1) sprinkling truck,Pull the rear handle of the four-way valve parallel to the ground, open the ball valve that you want to spray (forward, back, side spray, shower), and then start the engine, hook the transmission into gear, pull the force extractor switch back to take the force, and then disconnect the clutch, the pump starts to run, and start sprinkling water

(2)sprinkling truck, After the water in the tank is sprinkled, the driver should push the power extractor control handle forward in time, that is, the gear is out of gear, and the sprinkler pump stops running.

tree sprinkling tankePrecautions.
1. When the sprinkler uses the river ditch and pond as the water source, pay attention to the end of the suction pipe. In order to avoid inhaling stones or more sediment, drift debris, suction pipe end is generally equipped with a filter device, water suction is strictly prohibited to remove the filter device. If the water source is shallow, it is necessary to dig the suction deeper in advance to ensure that it does not contain debris and does not enter air. Different sprinkler pumps have different requirements for water sources, clean water pumps require no impurities in the water, turbidated water pumps require no stones and too much sediment in the water.
2. Before the centrifugal pump absorbs water each time, a certain amount of water must be added to the pump, and the water inlet must be closed after the addition. When the self-priming pump is used for the first time, it needs to add water, and it is not necessary to add water later.
3. Before water is sucked into the box, the water inlet pipe system must maintain a certain vacuum. The water inlet pipe system must be sealed reliably, the hose can not be damaged, and the hard pipe can not be cracked, otherwise there will be air leakage, which will cause no water suction.
4. Whether it is before absorbing water or before sprinkling water, the gear of the force taking device must be carried out when stopping.
5. Before winter comes, the water in the pump and water pipe should be emptied to prevent freezing and cracking. In northern China, there is no longer construction in the severe winter, so after the construction is completed, the water pump and the water pipe are immediately emptied to prevent future problems.
6. The sprinkler head position is low, close to the ground, spraying pressure is large, can be used to wash the road; The position of the rear sprinkler is higher (the rear sprinkler of the sprinkler is generally installed one left and right), the sprinkling water surface is wider, and can be used for highway construction sprinkling. When using the rear sprinkler, the front nozzle should be closed; When using an adjustable sprinkler, the sprinkler width can be adjusted as needed. The wider the sprinkling width, the less overlap in the middle and the more uniform the sprinkling density.
7. In the process of use, the lubrication points of the transmission assembly should be regularly lubricated, and the joint points should be often tightened to ensure normal use.
8. The sprinkler storage tank is provided with a sewage pipe, and the inlet of the pipe is the lowest point of the water tank. After a period of use, the sewage pipe switch should be opened regularly to remove the debris accumulated in the tank until the water becomes clear.
