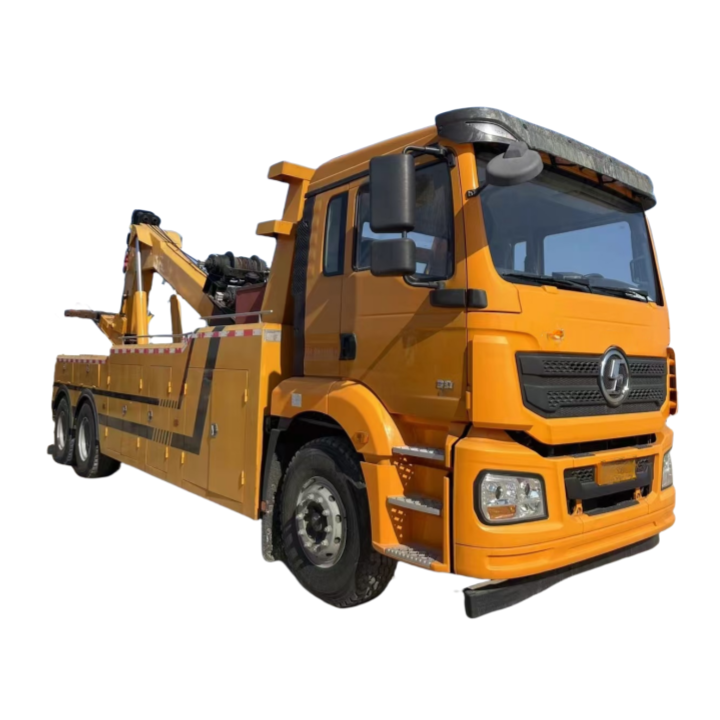

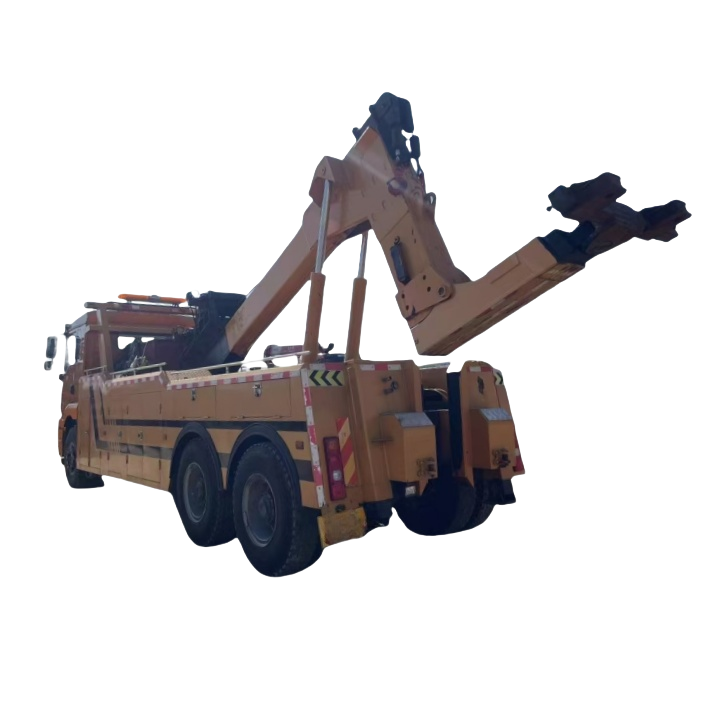

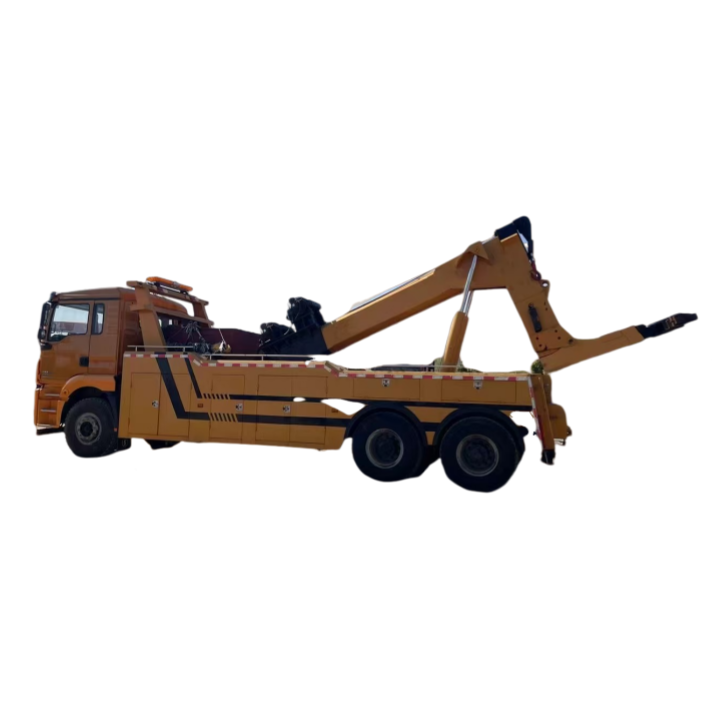

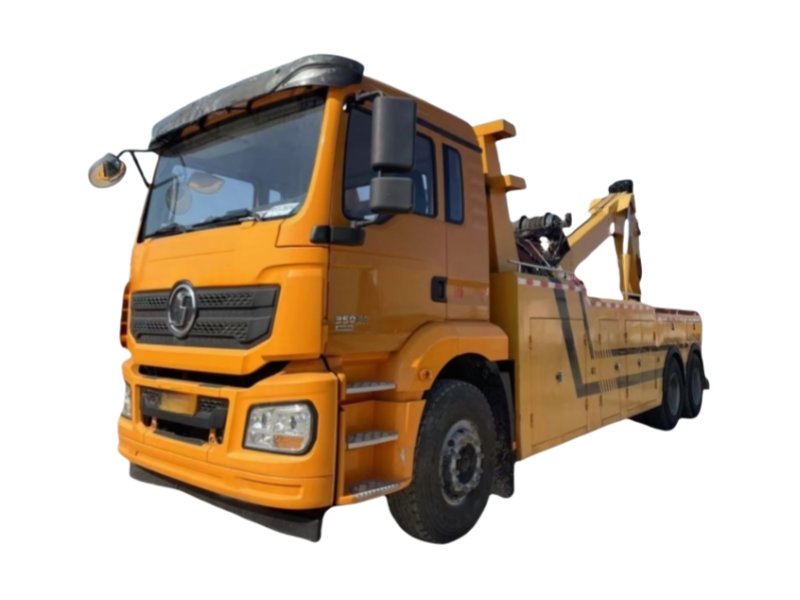

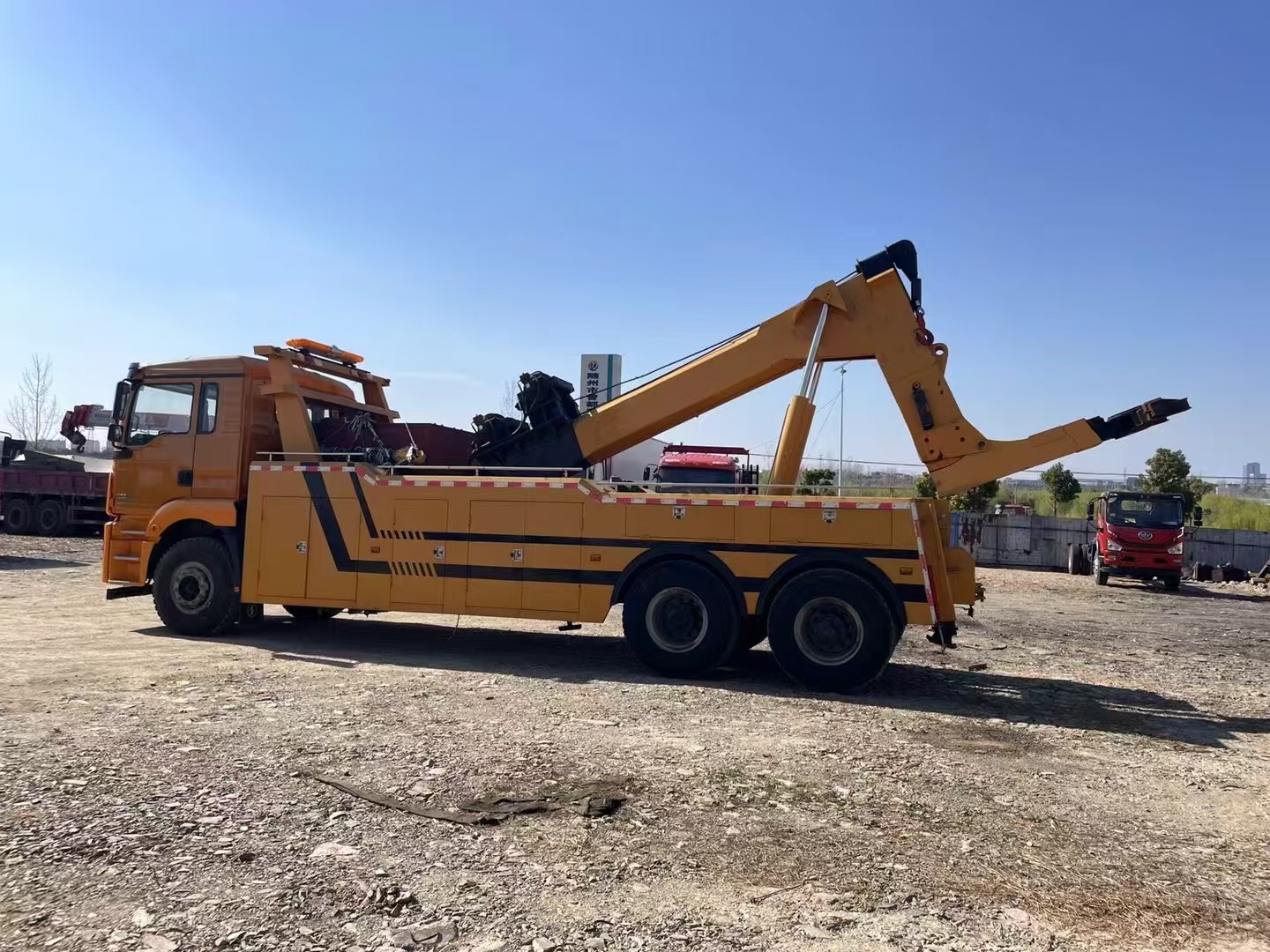

The Shacman Delong Rear Tandem Axle Crane Truck is a heavy-duty engineering vehicle designed for lifting, transporting, and deploying heavy loads across diverse industrial and construction scenarios.
Chassis Design:
Reinforced 8+5+8 layered steel frame (866×308mm) with localized 300mm-thick crossbeams to handle heavy payloads and reduce deformation risks
Tandem rear axle (16-ton capacity) with dual-stage shock absorbers ensures stability during lifting operations
Engine:
Equipped with Weichai WP7.300E61 (300 HP) or WP8.350E61 (350 HP) engines, compliant with Euro VI/China VI emission standards. Delivers 220–257 kW power output for superior torque and fuel efficiency
Transmission:
9-speed forward + 1-reverse gearbox (optional 12-speed) for smooth gear shifts and adaptability to steep slopes or uneven terrain
Lifting Capacity:
10-ton Crane (Standard): Max working radius of 11.5m and lifting height of 13.5m. Capable of lifting 10 tons at 2.5m radius for construction and machinery handling
14-ton Crane (Optional): Extended radius of 18.5m and height of 20.5m, ideal for port logistics and high-altitude operations
Hydraulic System:
Integrated Bosch Rexroth hydraulic cylinders and Huade pumps for leak-proof, high-pressure operation. Features quick-lifting mechanisms and overload protection
Safety Features:
Dual-stage hydraulic stabilizers, rear stabilizers with 3.57m span, and ABS-equipped braking system to prevent rollovers
Dimensions:
Available in 6.5–8.5m lengths, 2.4m widths, and 0.55–0.8m heights. Reinforced with Q345A high-strength steel and encrypted crossbeams for durability
The Shacman Delong Rear Tandem Axle Crane Truck has redefined industrial efficiency with its cutting-edge engineering and versatile operational capabilities. Designed for demanding environments such as construction, logistics, and emergency response, this vehicle combines Shacman Delong’s proprietary chassis innovations, advanced crane mechanics, and user-centric customization to deliver unmatched performance. Below, we delve deeper into its technical architecture, real-world applications, and global market impact.
The company was founded on May 23, 2013. It mainly engages in the sales, import, and export of special vehicles (e.g., tanker trucks, sanitation vehicles, dangerous goods vans), construction machinery, auto parts, as well as the manufacturing of special vehicle equipment and molds.
Its main products include tanker trucks, sanitation vehicles, dangerous goods enclosed trucks, cylinder transport vehicles, and collision - avoidance buffer trucks. The company also offers customized manufacturing and import - export services for these products.
The company provides a one - stop service covering customization, exchange, return, installment payment, vehicle registration assistance, and door - to - door delivery.
The products have already reached markets in Europe, America, Vietnam, North Korea, and Southeast Asia. It is continuously expanding into emerging markets like the Middle East and South America. The company can adapt to the regulatory standards (such as environmental protection and safety certifications) of the customers' regions.
