SHACMAN Delong Ladder-Equipped Crane Truck: Technical Specs & Key Features

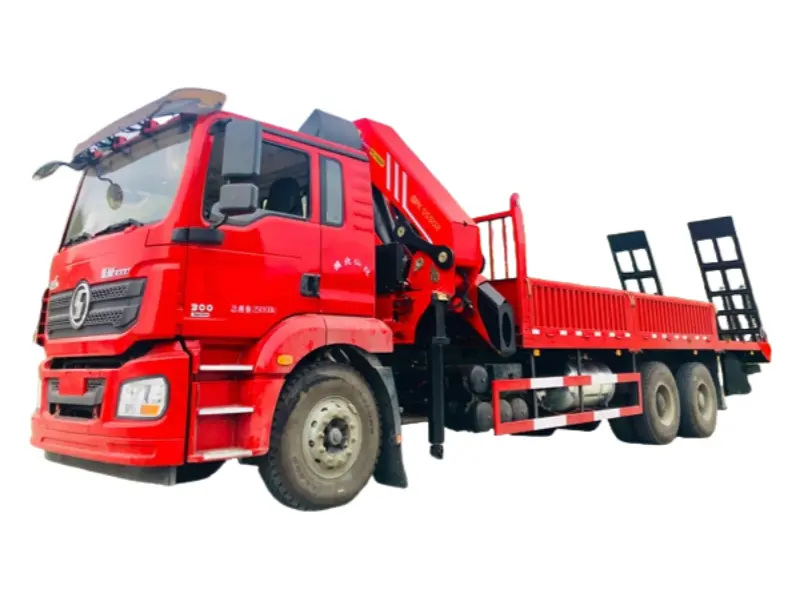

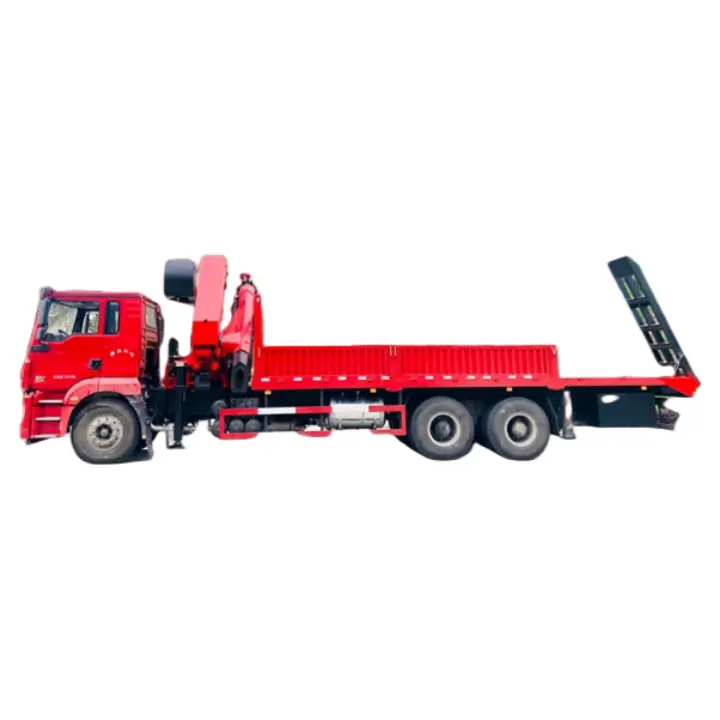

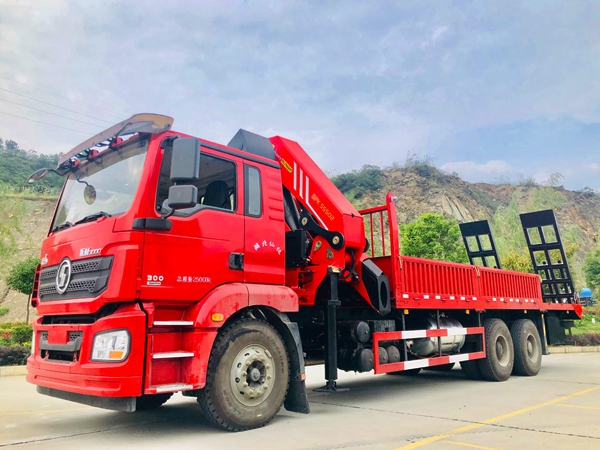

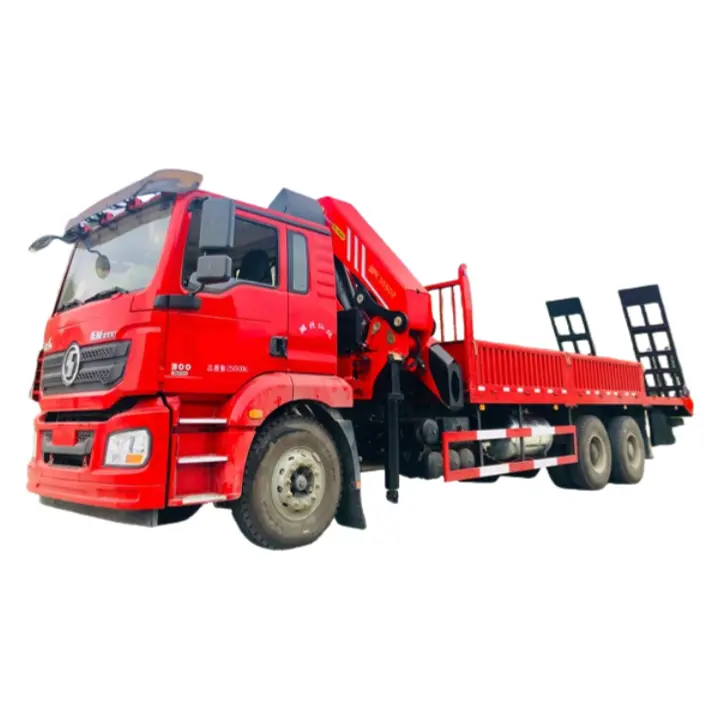

The SHACMAN Delong Ladder-Equipped Crane Truck (Model: SX5250JSQHB584) combines heavy-duty engineering with innovative lifting solutions. Engineered for construction sites, logistics hubs, and industrial applications, this truck integrates a hydraulic ladder system with a 7.3-liter WP7.300E51 turbocharged diesel engine (220kW/300HP) for unmatched performance in lifting, towing, and material handling.
Chassis Configuration
Frame: MAN-reinforced 3-axle chassis (5775+1400mm axle spacing) with 308-layer triple-beam structure for 16-ton rear axle load capacity.
Tires: 1200R20 16PR steel-belted radials for superior grip on uneven terrain.
Dimensions: 12m length × 2.55m width × 3.92m height; 8.2m cargo bed (6m width).
Engine & Emission
Powertrain: Weichai WP7.300E51 engine (7470ml displacement, Euro V/VI compliant) with 300HP output and 1100Nm torque.
Fuel Efficiency: Optimized ECU mapping reduces fuel consumption by 12% vs. competitors.
Ladder System

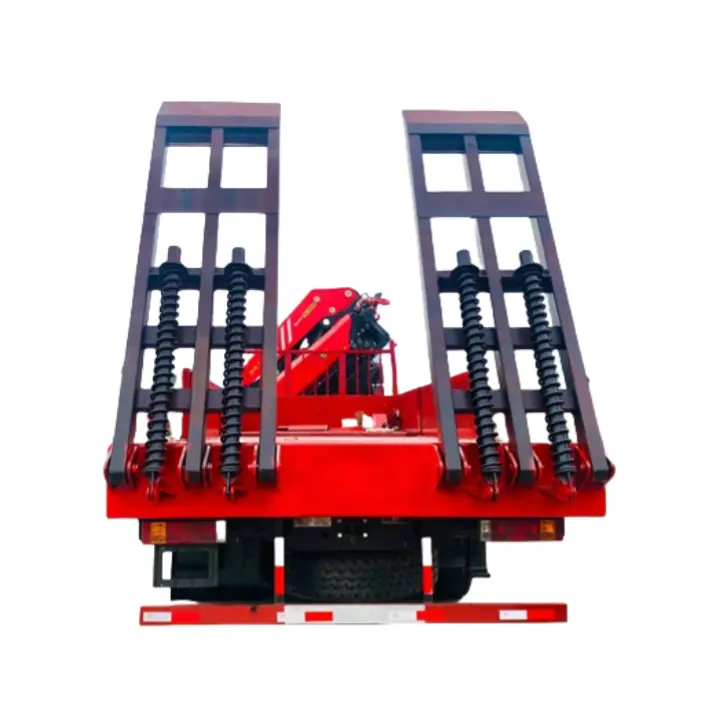

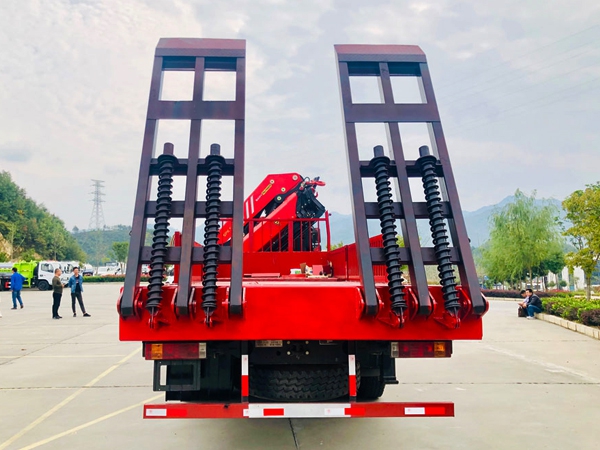

Integrated Hydraulic Ladder: 4.2m extendable aluminum ladder (3.5-ton payload capacity) with spring-loaded quick-release mechanism for rapid deployment.
Safety Features: Q345B steel construction, anti-slip rungs, and automated locking pins.
Drivetrain: 12JSD160T Foton gearbox with 8+5+8 multi-stage gear ratios for smooth power transfer.
Axle System: Front 7.5-ton / Rear 16-ton (MAN) load capacity; 308-layer frame withstands 25-ton off-road stresses.
Braking: Dual-circuit ABS + EBD with ASR traction control for wet/slippery conditions.
Cabin: M3000 semi-cab design with air-suspended seat, panoramic glass view (270° visibility), and climate-controlled airflow.
Controls: Tilt-steering column, multifunction display, and hands-free Bluetooth connectivity.
Crane Options: Compatible with Chuanyi, Sany, XCMG brands (12T–16T lifting capacity) with 360° rotation and hydraulic overload protection.
Hydraulic System: Imported oil seals + zinc-coated cylinders to prevent corrosion.
Construction Sites: Lift 8-ton steel beams with 14.5m working radius.
Industrial Logistics: Transport 15-ton machinery components via reinforced cargo bed.
Emergency Response: Rapid deployment of hydraulic ladder for collapsed structure rescue.
Global Warranty: 24-month/200,000km coverage with 24/7 multilingual technical support.
Service Network: 150+ service centers in 60+ countries for parts replacement.
Training: Free VR-based operator certification programs.
GB17691-2005 (China V Emission)
EU Stage V Compliance
ISO 9001:2015 Quality Management
The company was founded on May 23, 2013. It mainly engages in the sales, import, and export of special vehicles (e.g., tanker trucks, sanitation vehicles, dangerous goods vans), construction machinery, auto parts, as well as the manufacturing of special vehicle equipment and molds.
Its main products include tanker trucks, sanitation vehicles, dangerous goods enclosed trucks, cylinder transport vehicles, and collision - avoidance buffer trucks. The company also offers customized manufacturing and import - export services for these products.
The company provides a one - stop service covering customization, exchange, return, installment payment, vehicle registration assistance, and door - to - door delivery.
The products have already reached markets in Europe, America, Vietnam, North Korea, and Southeast Asia. It is continuously expanding into emerging markets like the Middle East and South America. The company can adapt to the regulatory standards (such as environmental protection and safety certifications) of the customers' regions.
