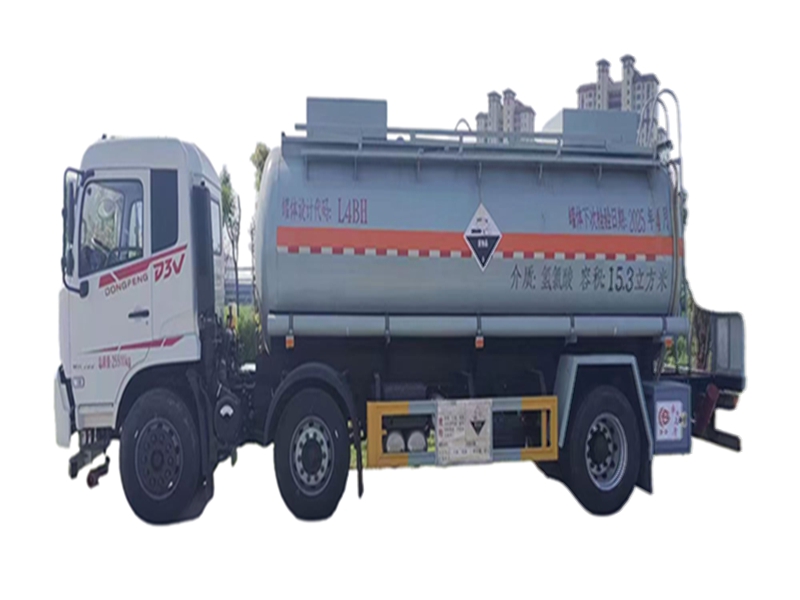

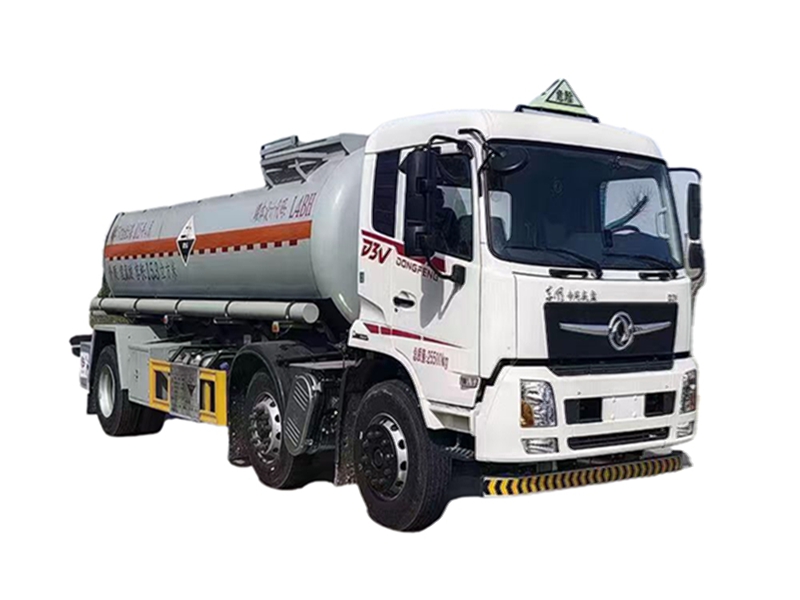

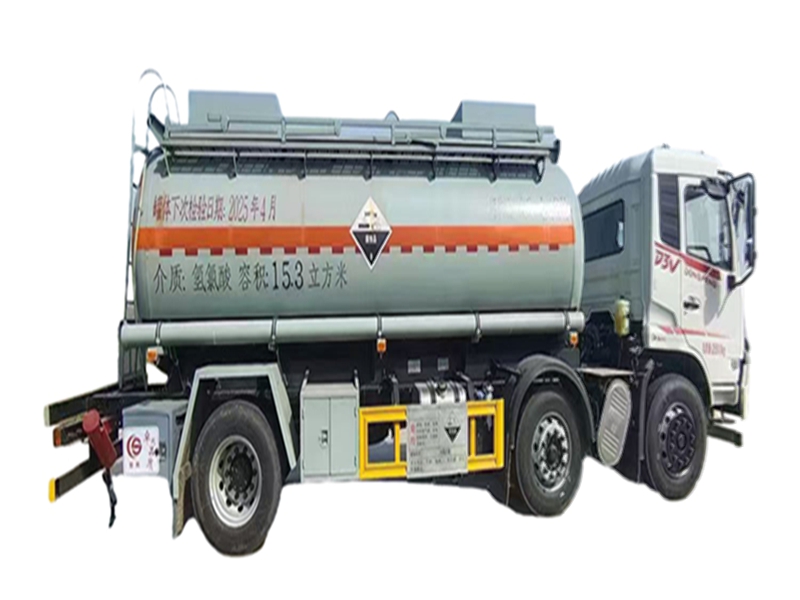

East wind D3V Chusheng Dongfeng small three-axis 15.3m3 corrosive goods tank truck transport vehicle
Complete vehicle model: CSC5261GFWDF6CY
Chassis model: DFV1263GW6DJ1
Chassis configuration: D3V flat roof cab (DFCV Tianjin cab body), Kang Ji B6.2 NS6B 260 hp, FastTrek 9-speed transmission, 6 ton dual front axle, 10 ton rear axle, 1995 + 4100mm wheelbase, 295/80 R22. 518 PR tyres, aluminium 260L fuel tank truck, with air conditioner, air gallery seat, electric glass, central locking, speed limit of front wheel, driving recorder, rear axle suspension, hazard warning lamp. With EBS (electro-pneumatic braking system), tank truckTPMS (front axle single tire pressure monitoring). ESC (anti-roll system).
Upper loading configuration: the tank body and head are made of the national standard carbon steel plate thickness, and the thickness of the cylinder body 4mm, head thickness 4.5mm, thickness of lined polyethylene plastic layer 16mm, there are plastic walkways on both sides of the tank roof, iron folding guardrail, two fully plastic feed inlets on the tank roof, one DN100 stainless steel lined tetrafluoride pneumatic submarine valve with emergency cut-off switch, tank truck equipped with submarine valve automatic alarm system, through plastic lined tee pipe, one DN80 lined PTFE ball valve with outlet on the left and right under the rear tail girder of tank body, the outlet is equipped with a plastic protection box, three cleaning hole blind plates are reserved on the tank top, and two PVC barrel tubes, two fire extinguishers, two discharge tubes and rear ladder are equipped on both sides of the tank. Safety signs.
Explosion-proof Structural Design
Dongfeng dangerous goods oil tank trucks adopt a special explosion-proof structural design. The tank truck body is made of high-strength, corrosion-resistant alloy steel, and reinforcing ribs are set at key parts of the tank body, tank truck which can effectively withstand external collisions and internal pressure changes, preventing tank body rupture and subsequent explosions. For example, in simulated extreme collision tests, this structure can significantly reduce the deformation amount of the tank body, ensuring the safety of dangerous goods transportation.
They are equipped with advanced explosion-proof breather valves. When the pressure inside the tank truck reaches a certain threshold, the breather valves can automatically open or close to balance the internal and external pressure of the tank, avoiding tank body damage caused by excessively high or low pressure. Compared with traditional breather valves, they have a faster response speed and higher sensitivity, effectively reducing the risk of explosions.
Electrostatic Elimination Technology
The entire vehicle is equipped with a comprehensive electrostatic elimination system. Electrostatic grounding devices are installed on the tank truck body, pipelines, and other parts to promptly discharge the static electricity generated during transportation into the ground, preventing static electricity accumulation from causing sparks. After actual tests, tank truck system can control the electrostatic voltage within a safe range, greatly reducing the possibility of fires or explosions caused by static electricity.
Conductive rubber tires are used to further enhance the electrostatic discharge capacity, ensuring the electrostatic safety of the vehicle during driving. Compared with ordinary tires, the electrostatic discharge efficiency of conductive rubber tires is increased several times.
High-quality Sealing Materials and Processes
High-performance sealing materials, tank truck such as fluororubber sealing rings, are used at the connecting parts of the tank body. These sealing rings have good oil resistance, corrosion resistance, and high-temperature resistance, effectively preventing the leakage of dangerous goods. During long-term use, the sealing performance of the sealing rings remains stable,tank truck with an extremely low leakage rate.
Advanced welding processes ensure the quality of the tank body welds. Automated welding equipment is used, tank truck resulting in uniform and dense welds without defects such as pores or slag inclusions. After strict testing, the sealing performance of the welds meets high-standard requirements, providing reliable sealing guarantees for the transportation of dangerous goods.
Leakage Monitoring and Alarm System
High-precision leakage monitoring sensors are equipped to monitor in real time whether there are leakage situations at the tank truck body, pipelines, and other parts. Once a leakage is detected, the system will immediately issue an audible and visual alarm signal and accurately indicate the leakage location, facilitating the driver to take timely measures. The monitoring accuracy of this system is high, and tank truck can detect leaks at an early stage to avoid the expansion of leaks and serious consequences.
