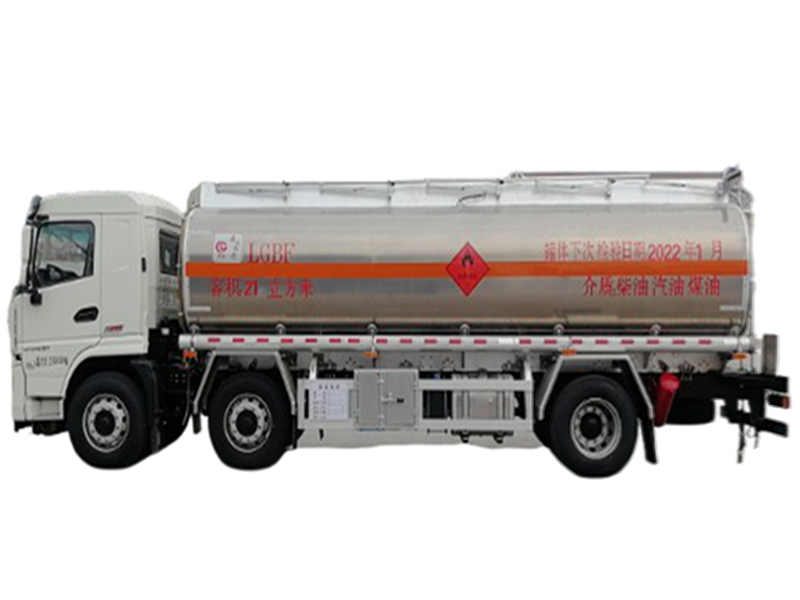

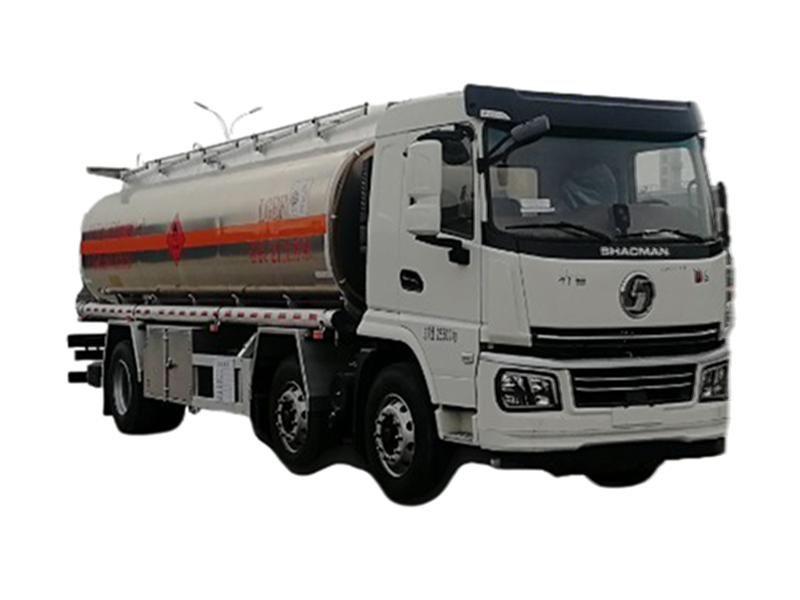

Main Technical Parameters of Shaanxi Auto XuanDe (Yi6) 21m³ Aluminum Alloy Fuel Tanker (China VI Emission Standard):
Engine Power: Yuchai 245HP
Dimensions (L×W×H): 9,900 × 2,525 × 3,300 mm
Gross Vehicle Weight: 25,500 kg
Rated Load Capacity: 16,605 kg
Curb Weight: 8,700 kg
Shacman Wing 6 Semi-High Roof / 2220 Standard Version (Comfort Air-Suspension Seat, Power Windows, Automatic Climate Control, Central Locking, Integrated Rearview Mirrors, Multi-Function Steering Wheel, Sun Visor, Radio, Tianxingjian Zhiya BD In-Vehicle Terminal, Four-Point Full-Floating Suspension, 7-inch Color LCD Instrument Cluster, Halogen Front Combination Lights, Illuminated Emblem), Yuchai YCS06245-60 Engine, Shaanxi Gear Small Eight-Speed 8JS85TE with Synchronizer and PTO, 1800+5000 Wheelbase, 5-ton Dual Front Axles, 11.5-ton Composite Air-Suspension Hande Axle, 295 Vacuum Tires, 280 Double Frame, Front Disc Brakes, Speed Limited to 80 km/h, ABS, Flush-Mounted Air Filter; Domestic Four-Channel ABS; ECU Reads and Identifies Vehicle Code; Seat Belt Buckle Alarm; Right-Turn Voice Prompt; Brake Test Connector; Maintenance-Free Battery; Front Guard; Aftertreatment Electric Heating.
New Regulations: Run-Flat Tires, Brake Pad Wear Alarm, Tire Pressure Monitoring System (TPMS), Lane Departure Collision Warning, EBS (Electronic Braking System).
Tank Body: The declared volume is 21 cubic meters, fabricated from high-quality 5182 series aluminum alloy plates. The cylindrical shell is 5.5mm thick, and the end caps are 6mm thick. It features a single compartment with an integrated pump capable of both loading and unloading operations.
Equipped with one set of Euro-standard components, including:
- Two Euro-standard tank openings
- One bottom valve
- One bottom loading port
- One vapor recovery system
- One overflow prevention probe and static electricity socket
The bottom valve is equipped with an automatic shut-off system. Additional features include:
- One tool box
- Foldable guardrails

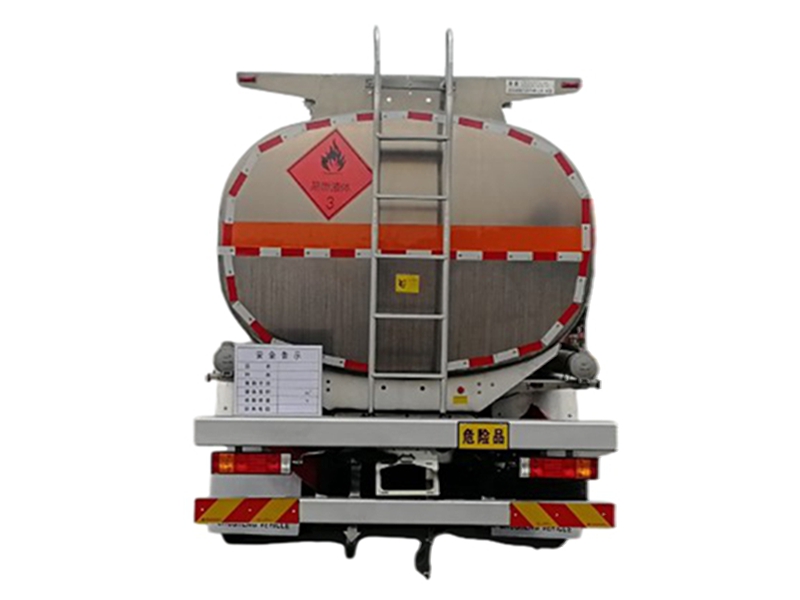

- A ladder at the rear of the tank
- Two reflector panels
- One flame arrestor cap
- Two oil transfer hoses matching the tank's length
- Two fire extinguishers
- 3M reflective strips and reflective tape
- Safety warning labels
- Three "Flammable Liquid" hazard signs
- Pre-installed position for a flow meter
(Note: The translation maintains technical accuracy while adapting measurements and terminology to industry standards. "fang" is rendered as "cubic meters" for clarity, and specialized components like "haidifa" are translated as "bottom valve" with functional descriptors.)
