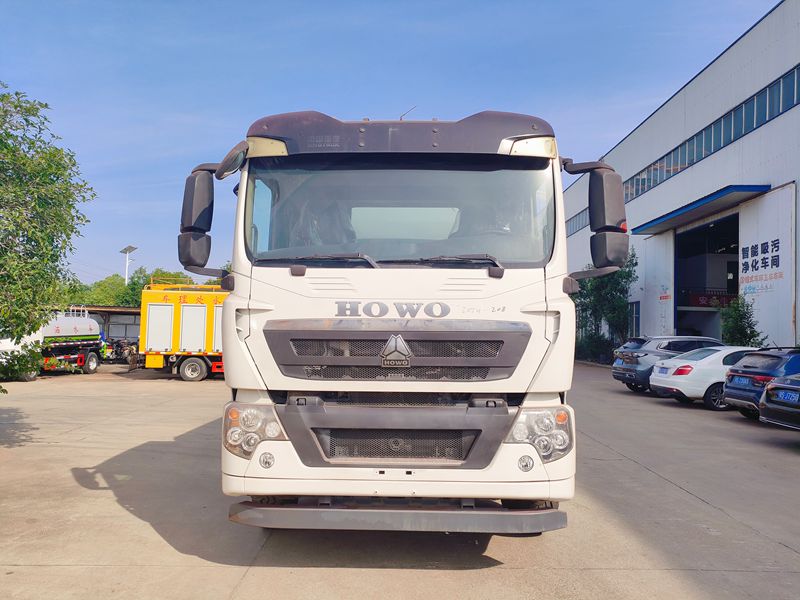

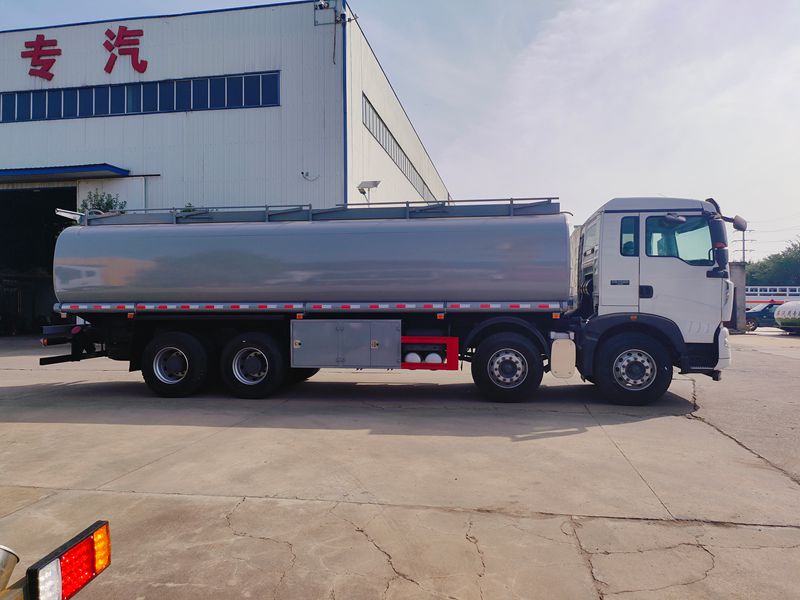

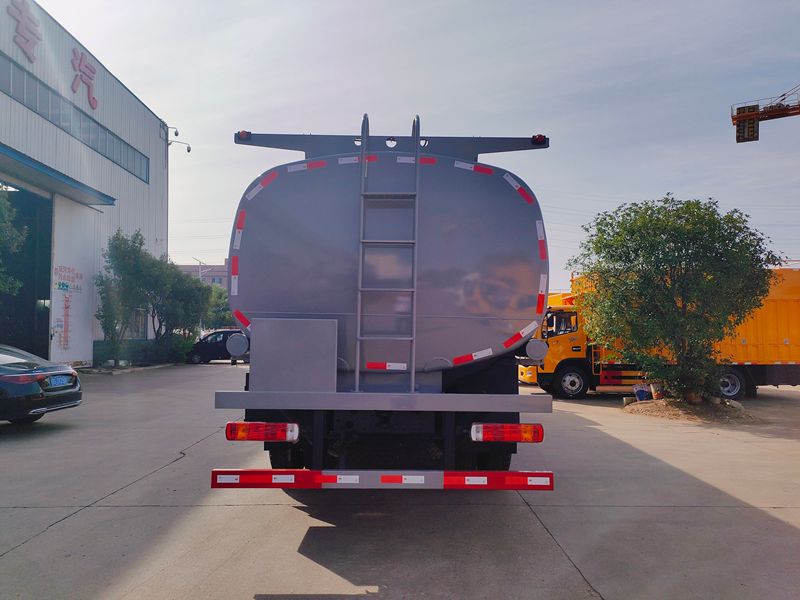

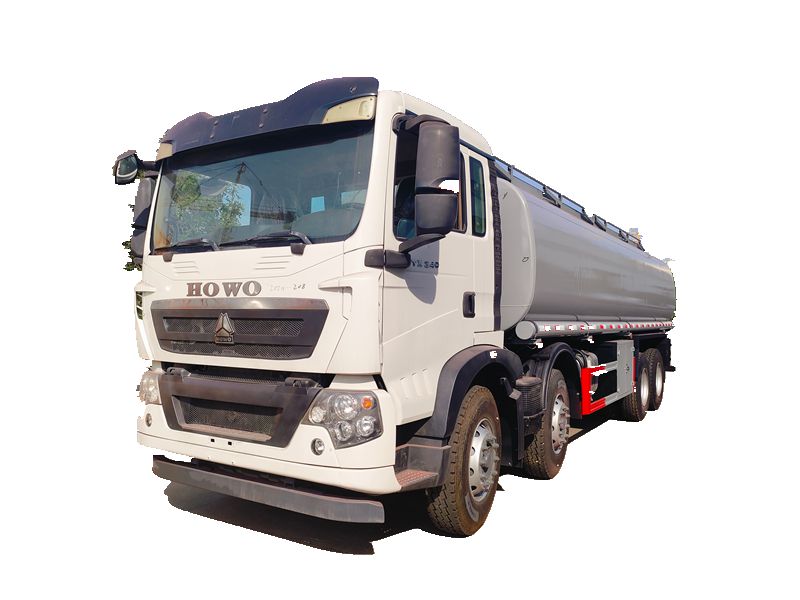

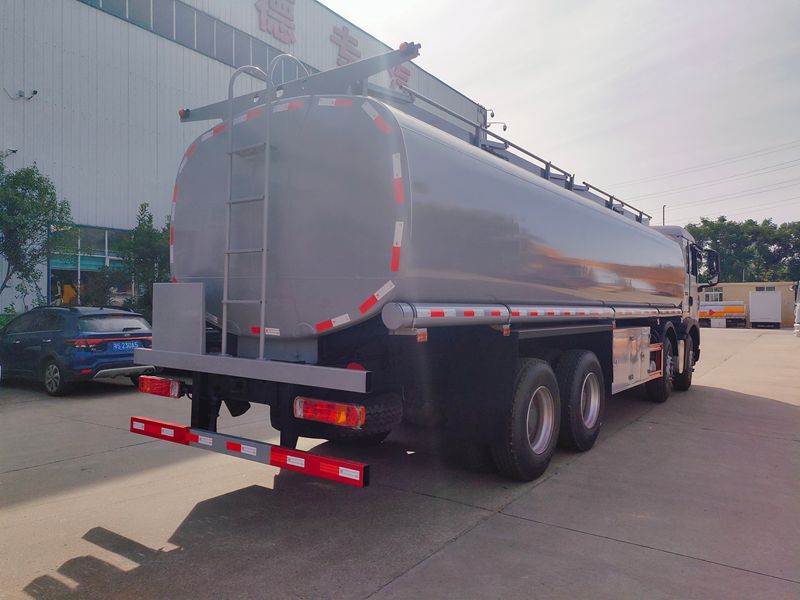

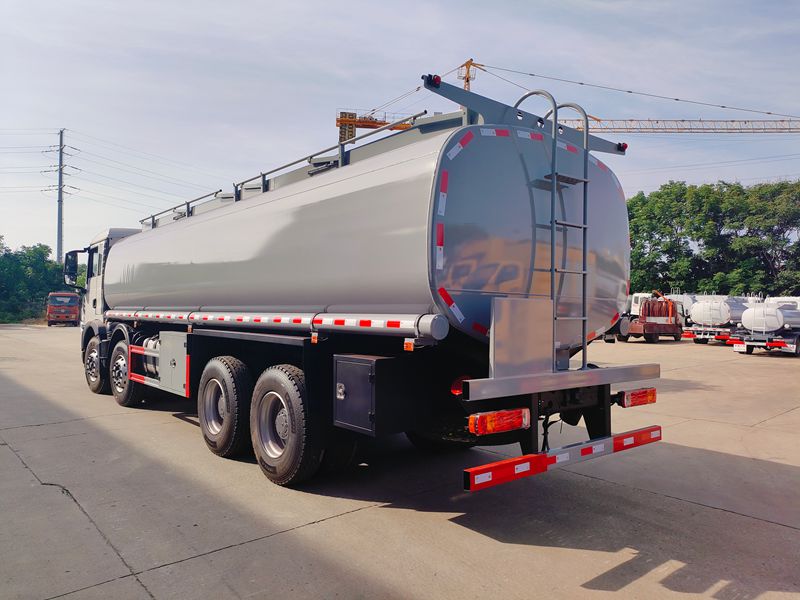

Sinotruk Howo Tanker Truck: 8x4 Chassis, 12-Speed Gearbox, 30CBM Capacity

30CBM Tank: Precision Engineering for Safe Transport

• Structural Integrity: 8mm tank walls with 6mm epoxy resin anti-corrosion lining, tested to withstand 15,000 kPa pressure—ideal for gasoline, diesel, or light chemicals tanker truck.

• Compartment Flexibility: Configurable into 2-3 independent chambers with separate manholes and discharge valves, tanker truck enabling simultaneous transport of different liquids (e.g., diesel + kerosene).

• Efficient Loading/Unloading:

• Top loading: 2x DN150 aluminum manholes with flame arresters and anti-spill caps (API RP 1004 compliant).

• Bottom discharge: 2x DN100 stainless steel ball valves with pneumatic actuators, unloading 30CBM in 8 minutes via 6,000L/min centrifugal pump tanker truck.

• Safety Enhancements: Anti-slosh baffles (5 partitions) reduce liquid surge by 65% during braking, minimizing rollover risk tanker truck.

Optional Upgrades for Specialized Cargo

• Thermal Insulation: 100mm polyurethane foam + aluminum cladding for temperature-sensitive liquids (maintains ±3°C for 12 hours).

• Food-Grade Lining: Stainless steel 304 interior for edible oils or pharmaceuticals (FDA compliant).

• Vapor Recovery System: Captures emissions during loading/unloading, meeting EPA standards for North American markets.

Heavy-Duty Axles & Tires: Built for Global Terrains

• 16-Ton Rear Axles: Two rear axles with hypoid gears, each rated for 16 tons—ensuring stable weight distribution even with uneven loads.

• Leaf Spring Suspension: Front (10-leaf) and rear (12-leaf) springs with hydraulic shock absorbers,tanker truck reducing vibration by 40% on gravel roads.

• 12R22.5 Tubeless Tires: 18PR radial tires with 18mm deep tread for superior traction in rain, mud, or snow. Rated for 300,000km lifespan, cutting replacement costs.

Comprehensive Safety Systems

• Active Safety:

• ABS + EBD: Prevents wheel lock and optimizes braking force distribution.

• 360° Camera System: 4 HD cameras with 10-inch in-cab monitor, eliminating blind spots during parking and loading tanker truck.

• Exhaust Brake: Supplements service brakes on descents, reducing brake fade by 50%.

• Passive Safety:

• Static Grounding Device: 5m copper cable with clamp, discharging static electricity to prevent sparks.

• Emergency Shut-Off (ESD) System: Instantly stops pump and closes valves via cab or remote control (100m range).

• Fire Suppression Kit: 2x 8kg dry powder extinguishers + under-tank heat sensors (UN ECE R107 compliant).

Operator-Centric Cab Design

• Ergonomic Interior: tanker truck Air-suspended driver’s seat with 8-way adjustment, lumbar support, and heating (for cold climates).

• Climate Control: Dual-zone AC/heating system, maintaining 22°C ±2°C in -30°C to 50°C external temperatures tanker truck.

• Smart Dashboard: 7-inch LCD display showing fuel level, tank pressure, tire pressure, and engine diagnostics—with real-time alerts for maintenance needs.

• Noise Reduction: Cab insulation reduces interior noise to 72dB at 60km/h, minimizing driver fatigue during long hauls tanker truck.

Durability & Low Total Cost of Ownership

• Corrosion Resistance: 6-layer electrophoretic paint (zinc primer + epoxy) passes 1,200-hour salt spray testing—ideal for coastal regions tanker truck.
• Easy Maintenance:

• tanker truck Centralized Lubrication Points: 20+ grease fittings for axles and suspension, reducing service time by 30%.

• Long-Life Filters: Hydraulic and fuel filters with 1,000-hour service intervals tanker truck.

•
